Product Description

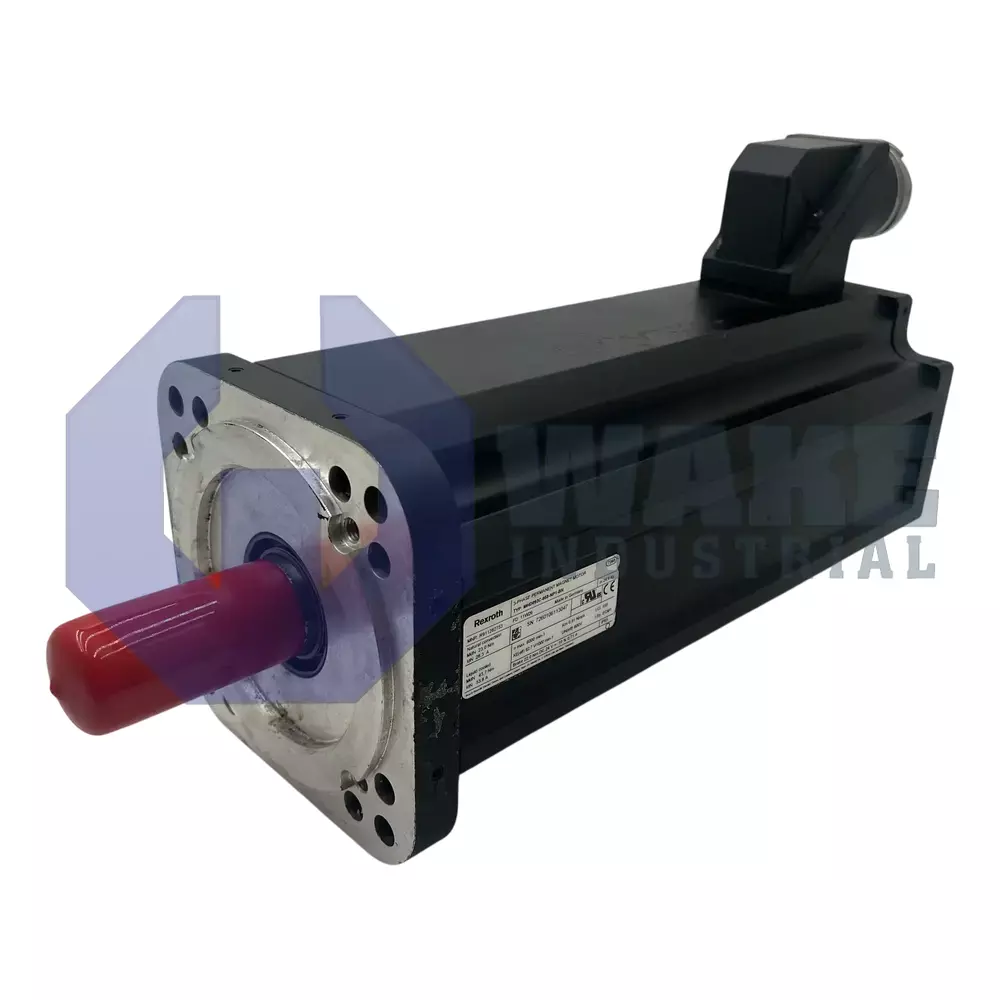

The Bosch Rexroth Group MHD Synchronous motors has among its series the MHD093C-058-NP1-BN. Its motor size is 093 with a type 'C' length. Its motor encoder is a digital servo feedback, shaft with key per DIN6885-1, and a sealing ring. There is a 22Nm holding brake for slowing it down. It's housing design is primarily made for cooling by liquid matter and natural convection.
The MHD093C-058-NP1-BN motor speed is 4000min–¹ and the number of pole pairs are 4. At Natural 60K, its continuous torque at standstill is 23Nm and the continuous current at standstill is 28.3A. At Natural 100K, its continuous torque and continuous current at standstill are 28Nm and 34.5A respectively. At Surface 60K/100, the continuous torque at standstill is 34.5Nm and the continuous current at standstill is 42.5A. At Liquid 60K/100, the continuous torque and continuous current at standstill is 43.7Nm and 53.8A respectively. Other electrical parameters include the peak current which is at 127.4A, torque constant at 20°C is 0.91Nm/A, and Voltage is 82.7v/1000min–¹. The winding resistance is 0.32Ω and the winding inductivity is 2.6mH.
Rated data and other mechanical data are recorded under four major parameters which are the Natural 60K, Natural 100K, Surface 60K/100 and Liquid 60K/100. Some of them are the Rated Speed at 2000min–¹, 3500min–¹, 3500min–¹ and 3500min–¹ respectively, Rated Performance at 2.0kW, 4.0kW, 8.5kW and 14.4kW respectively. Also the Rated Torque is measured and recorded under the aforementioned parameters as follows 7.9Nm, 9.1Nm, 19.2Nm and 32Nm, while under same parameters Rated Voltage is at 168V, 293V, 302V and 317V. Others are as follows; Rated Current at 6.9A, 7.9A, 16.7A and 27.9A and the Rated Frequency at 133Hz for Natural 60K and stays at 2333Hz for other parameters. Minimum strand cross-section is 2.5mm² at Natural 60K and 100K and 6.0mm² at Surface 60K/100 and Liquid 60K/100. Time constant at Natural 60K and 100K is the same at 75min but at Surface 60K/100 it is 35min and at Liquid 60K/100 it is 25min.
The degree of protection is IP65 standard provided the power cables are mounted properly and insulation class is F. The housing varnish is a prime coat black. Please do not operate without proper consideration of all the information that is in its accompanying manual to avoid any regret due to injury to body or loss of machine parts. The MHD093C-058-NP1-BN can be shipped to any address globally with a one-year warranty period from Wake Industrial.
