Product Description

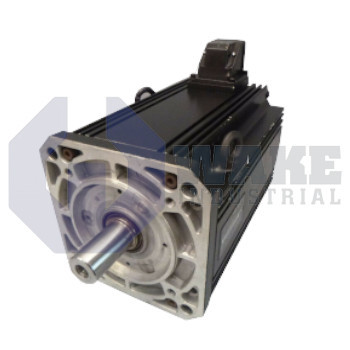

The MDD115B-N-030-N2L-130GA0 is a Bosch Rexroth servo motor. It belongs to the MDD product range that includes a series of nine motors with different continuous torques and speeds for satisfying a wide range of applications. Because of their capability of delivering high power density, the MDD115 motor series is suitable for applications that involve tool changing devices and roller feeds for punching, pressing and nibbling machines. The motor supports digital servo feedback. Power connection on the motor is situated on side A of the housing. A blocking brake is not available on the MDD115B-N-030-N2L-130GA0 motor. However, blocking brakes rated for 45 Nm and 60 Nm holding torque are available for MDD115 motors and can be ordered depending on customer requirements. The main shaft on the MDD115B-N-030-N2L-130GA0 is plain and is suited to non-positive shaft-to-hub connections.
The nominal speed rating of the MDD115B-N-030-N2L-130GA0 is 3000 RPM. The continuous torque at standstill for the 60 K overtemperature condition is 38 Nm with natural convection. The continuous current at standstill is 81.9 Amps with natural convection. The performance ratings with surface cooling include 47.3 Nm continuous torque and 102.9 continuous current. The thermal time constant is 90 minutes for natural convection and 60 minutes for surface cooling. The centering diameter of the motor is 130 millimeters. Bosch has designed the MDD115B-N-030-N2L-130GA0 for operated at ambient temperature that lie between 0 and 45 degrees Celsius and at elevations that lie between 0 and 1000 meters. The motor output derates outside these recommended conditions. The motor can also malfunction if operated outside specified ambient conditions. The approximate shipping weight of the MDD115B-N-030-N2L-130GA0 is 41 kilograms. The motor should only be installed and maintained by trained personnel. This product can be shipped globally with a one-year warranty period from Wake Industrial.
