MDD115B-N-015-N2M-130GB1

  • Rated 4.6 (28 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • MPN: R911261194
    In-Stock, Ships 3-5 Days

Current response time:

7 Minutes 38 Seconds

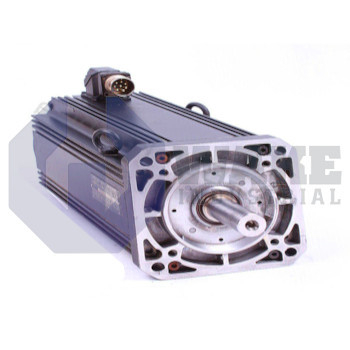

The MDD115B-N-015-N2M-130GB1 Servo Motor is manufactured by Bosch Rexroth Indramat. This unit operates with a 1500 Min nominal speed, Digital Servo Feedback with integrated multiturn absolute encoder , a(n) Plain Output Shaft, and it is Equipped with a blocking brake.

Preparing your secure checkout page...

Warranty
1-year-warranty Wake Industrial Warranty
Shipping
DHL Logo FedEx Logo
UPS Logo Freight Logo
DHL Logo FedEx Logo UPS Logo Freight Logo
Payment
Visa Logo AmEx Logo
Mastercard Logo Wire transfer Logo
Visa Logo AmEx Logo Mastercard Logo Wire transfer Logo
To Speak to a sales representative for pricing and lead time:

Product Description

The MDD115B-N-015-N2M-130GB1 digital AC servomotor produced by Bosch Rexroth must be wired in accordance with the machine manufacturer's terminal diagram. This motor must be started only by personnel with the required expertise. The product encompasses spigot nuts in its connectors that must be screwed tightly in place during the connection process. This device should be stored and transported only horizontally. The unit has a couple of M8 tapped holes on its housing. It should be picked up by the lifting screws if a blower is used for axial surface cooling.This motor must not be picked up by holding the output shaft. The product should not be tipped or dropped when it is dropped or tipped. This device has a nameplate attached to its housing. The unit must be connected using the manufacturer's cables. It encompasses a plain and smooth output shaft. This motor has a very high power density. The product has two winding sets. This device encompasses a laminated core with permanent magnets. The unit has a maximum duty cycle time of 15 minutes. Its S1 operating mode portrays the permissible continuous torque.This motor portrays data storage capabilities in its feedback. The product-related drive controller and blower operate independently of each other. This device comprises a 12-pin flanged socket on the housing for the feedback connection. The unit-associated operating curves depict its speed-limiting data and torque-limiting data. Its housing coat tends to peel if it is frequently used a stream cleaner. This digital AC servomotor must not have fluid around its output shaft with IM V3 mounting.

  • MDD115BN015N2M130GB1
  • MDD115B N 015 N2M 130GB1
  • mdd115b-n-015-n2m-130gb1

MDD115B-N-015-N2M-130GB1 Technical Specifications

Blocking Brake: Yes
Side B Shaft End: No
Size: 115
Transportation and Storage Temperature Range: -25 degrees C to 85 degrees C
Housing Design: Standard
Cooling Types: Natural Convection, Surface Cooling
Nominal Speed: 1500 min-1
Nominal Current of Blocking Brake: 1:00 AM
Protection Class: IP 65 (Without Blower), IP 44 (With Blower)
Pilot Diameter: 130 mm
