MDD112D-N-030-N2L-130PB1

Name: MDD112D-N-030-N2L-130PB1
Brand: Bosch Rexroth Indramat
Price: 334 USD
Availability: InStock
Rating: 4.4 (33 reviews)

Straightforward Pricing: No Rush Fees, No Credit Card Fees

MPN: R911247466

Unused Original Box Pricing Available!

In-Stock, Ships 3-5 Days

Current response time:

5 Minutes 57 Seconds

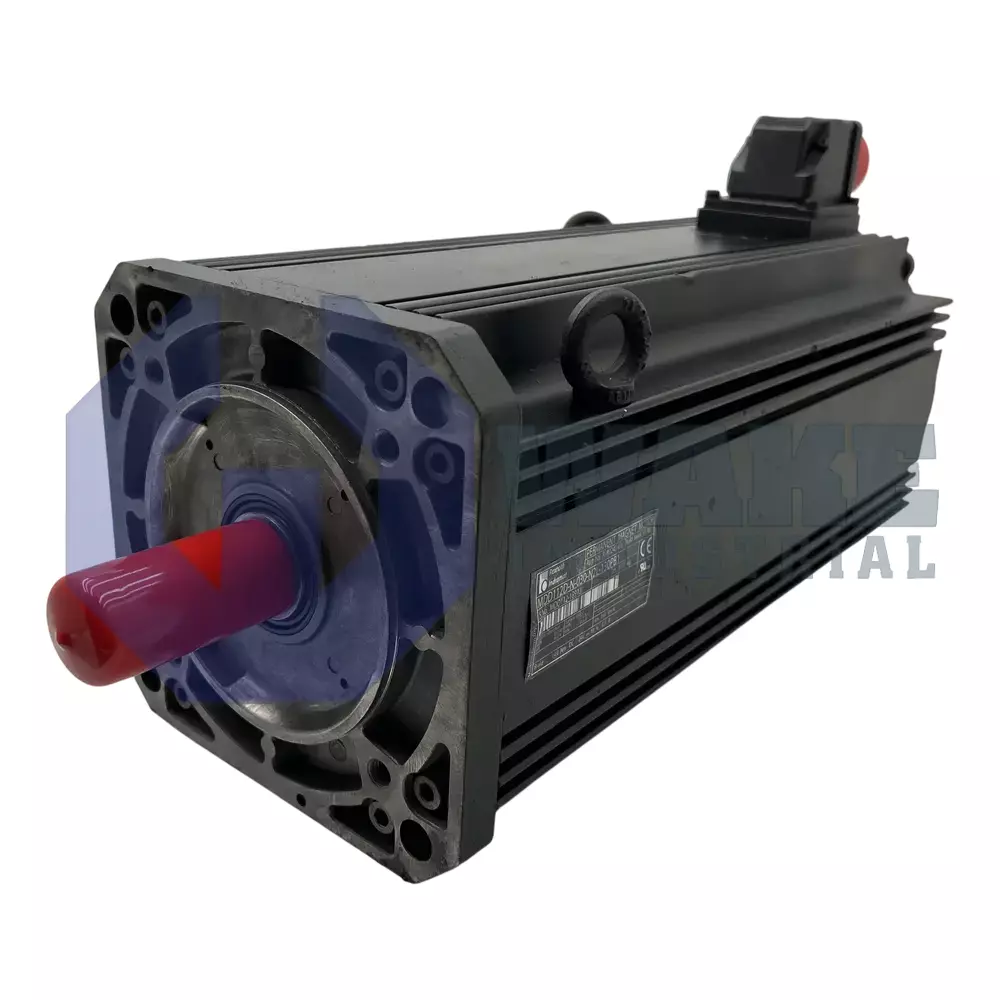

The MDD112D-N-030-N2L-130PB1 Servo Motor is manufactured by Bosch Rexroth Indramat. This unit operates with a 3000 Min nominal speed, Digital Servo Feedback, a(n) Output Shaft with Keyway, and it is Equipped with a blocking brake.

Preparing your secure checkout page...

Description
Revisions
Specs
FAQ

Product Description

The MDD112D-N-030-N2L-130PB1 motor is a digital AC servomotor from Bosch Rexroth. The motor can be used with the manufacturer’s digital drive controllers. This device is one of the manufacturer’s MDD series of such motors. It has a size of 112 and a length of D. The unit is a good choice for high-precision applications. The product is a synchronous motor with permanent magnets. These magnets are composed of iron oxide or rare-earth magnetic materials that help the motor deliver high inertia. The motor encompasses a brushless design thereby resulting in commutation being performed electronically. The motor is available with a one-year warranty.

The motor is fitted with lifetime lubricated bearings. The device is capable of operating under poor environmental conditions. It features high dynamics due to a suitable torque-inertia ratio. The unit has a standard housing design that makes it ideal for supporting both surface cooling and natural convection. The product has a nominal speed rating of 3,000min^-1. The motor supports a simple installation process and can be mounted both horizontally and vertically. The device incorporates digital servo feedback for speed evaluation of the motor as well as position detection of the rotor.

The feedback and power cables of the synchronous motor must be connected to the motor directly through connectors on the respective flanged sockets. The device has a peak current rating of 222.2A and a winding inductance of 1.5mH. The motor has a RAL 9005 black prime coat that should not exceed 40µm thickness. It should be used in temperatures between 0°C and 45°C. The product has a standard centering diameter of 130mm. The motor housing is designed and constructed according to DIN 40050 specifications. This protects the product against penetration by water and by extrinsic objects. The motor can be shipped to any address of your preference.

MDD112D-N-030-N2L-130PB1 Technical Specifications

Maximum installation elevation:	1000 meters above sea level
Insulation Class:	Class F
International Protection Class:	Design according to IP65
Nominal Speed:	3000 RPM
Inductance (winding):	1.5 mH
Current (peak load):	222.2 A
Brakes (blocking):	Equipped
Continous Torque at Standstill:	38 Nm
Suitable Atmospheric Temperature:	0 to 40 degree Centigrade
Mass:	59 Kg

Frequently Asked Questions about MDD112D-N-030-N2L-130PB1

Q: What defines the MDD112D-N-030-N2L-130PB1 digital AC servomotor from Bosch Rexroth?

A: This device is part of the MDD series and offers a size of 112 with length D, emphasizing suitability for high-precision applications. It's a synchronous motor featuring permanent magnets made of iron oxide or rare-earth materials, providing high inertia and precision.

Q: What are the primary operational characteristics of this MDD112D-N-030-N2L-130PB1 servo motor?

A: The motor adopts a brushless design, performing electronic commutation, ensuring high dynamics through an optimal torque-inertia ratio. Its standard housing design facilitates both surface cooling and natural convection, supporting a nominal speed rating of 3,000 min-1.

Q: How does this MDD112D-N-030-N2L-130PB1 motor ensure ease of installation and environmental resilience?

A: It offers a straightforward installation process, being mountable both horizontally and vertically. Equipped with lifetime lubricated bearings, the motor can operate effectively even under poor environmental conditions between temperatures of 0°C and 45°C.

Q: What feedback system and connectivity options are available for the MDD112D-N-030-N2L-130PB1?

A: The motor integrates digital servo feedback for speed evaluation and rotor position detection. Its feedback and power cables need direct connection through connectors on the respective flanged sockets.

Q: What protective measures are incorporated into the MDD112D-N-030-N2L-130PB1 motor's design?

A: The motor housing is built according to DIN 40050 specifications, safeguarding against water penetration and external objects. It's coated with an RAL 9005 black prime coat not exceeding 40 µm thickness, ensuring durability and protection.
