MDD112A-N-020-N2L-130PB1

Product Description

Bosch Rexroth is a famous manufacturer of industrial drive control products and motion control systems.

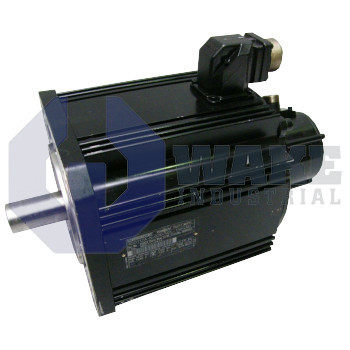

The MDD112A-N-020-N2L-130PB1 is a servo motor manufactured for a wide range of drive control applications and servo applications required for automating industrial machinery. This model has been designed for various types of speed and position control tasks. This servo motor can be used together with modern drive control systems in the industry. The resulting combination is able to rapidly respond to changes in drive parameters resulting in a rapid response system that is suited for assembly line automation. The motor also supports start stop applications and pick and place tasks due to its lower rotor inertia. Because of its user friendly features, this model can be used with a wide range of drive control platforms. This model can operate with efficiencies greater than 90%. The motor’s permanent magnets allow the construction of a low inertia motor. This is useful for highly accelerated movements.

The MDD112A-N-020-N2L-130PB1 is suitable for different high torque applications as well. This is possible with the high energy density and magnetic flux due to the motor’s low rotor inertia. Because of the use of electronic commutation in the motor, the maximum torque can be extracted at various motor speeds. The system has been designed with a nominal speed of 2000 rpm and comes with a mass of 25 kg. This model has a maximum theoretical torque of 30.7 Nm and a thermal time constant of 100 mins. The motor when supplied with a continuous current of 11.8 Nm can provide a continuous torque of 10.5 Nm. The motor should be used in areas where the ambient air temperature is between 0 to 40 degrees Celsius.
