Product Description

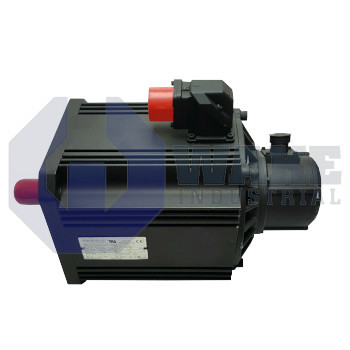

The Bosch Rexroth MDD112A-N-015-N2L-130PA0 is a synchronous servo motor. Its nominal speed rating is 1500 RPM. As per the type code the motor frame size is 112 and the frame length is A. The standard motor housing is suited to natural convection and surface cooling. The recommended ambient conditions for motor operation include 0 to 45 degrees Celsius temperature and 0 to 1000 meters altitude. Output of the motor derates if either the temperature or altitude exceed recommended limits. The maximum permitted temperature with derated output is 55 degrees Celsius. The maximum permitted altitude with derated output is 5000 meters. The recommended ambient conditions for motor storage include -25 to 85 degrees Celsius temperature and a dust- and shock-free environment. The motor housing length is 312 millimeters and the motor centering diameter is 130 millimeters.
The MDD112A-N-015-N2L-130PA0 is a flange mounted device. The size of the flange is 193 millimeters and the diameter of each mounting hole is 14 millimeters. The output direction of the electrical power connector is selected at the time the order is placed. Possible output directions are either side A, side B, to the right or to the left. The power socket on the MDD112A-N-015-N2L-130PA0 is on side A. The main output shaft on the MDD112A-N-015-N2L-130PA0 includes a keyway. The keyway prevents relative rotation between the motor shaft and the connected machine. In this way efficient torque transfer is ensured. The MDD112A-N-015-N2L-130PA0 supports digital servo feedback. A blocking brake, if required, has to be ordered separately. The servo controller connected to the MDD112A-N-015-N2L-130PA0 should be programmed prior to system commissioning. The motor and associated machinery should only be installed by qualified personnel.
