MDD093C-L-030-N2M-130GA2

Product Description

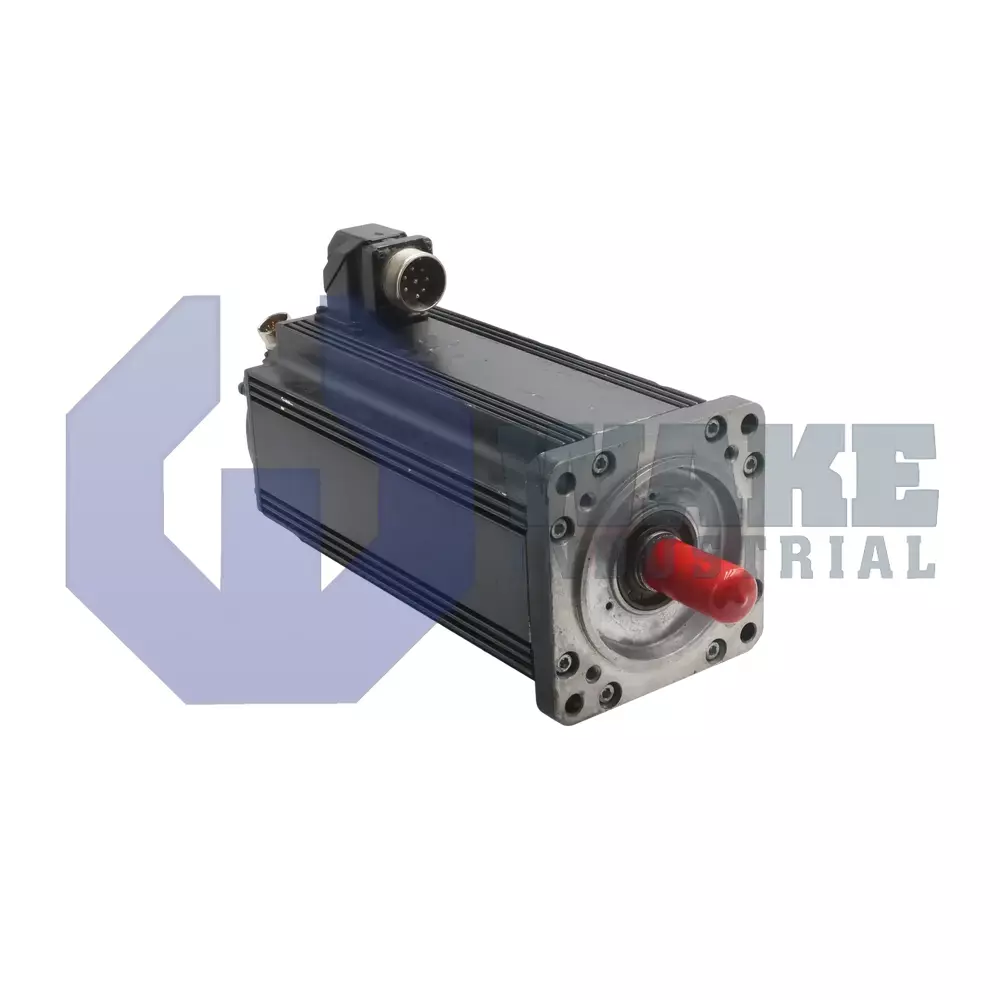

The Bosch Rexroth MDD093C-L-030-N2M-130GA2 is a digital servo motor. It belongs to the MDD product line. The motor is equipped with a multiturn encoder and supports digital servo feedback. Frame size of the servo motor, as per the type code, is 093. Frame length of the servo motor is C. The total length of the motor is approximately 386 millimeters. Bosch has provided mounting holes on the motor flange. The diameter of each of the mounting holes is 11 millimeters. The size of the motor flange is approximately 140 millimeters. The MDD093C-L-030-N2M-130GA2 is a servo motor with a plain shaft. Diameter of the motor shaft is 24 millimeters. The mass of the motor is 22 kilograms. An optional blocking brake installed on the motor weighs 1.1 kilograms. Release delay of the brake is 70 milliseconds and the clamping delay is 30 milliseconds.

The brake operates at 24 Volts DC and draws 0.7 Amps. Moment of inertia of the blocking brake is 0.00036 kg m². Operators can use the MDD093C-L-030-N2M-130GA2 motor with natural convection. Installation of an optional blower allows motor use with surface cooling. The continuous torque at standstill is 19.5 Nm with natural convection and 20.8 Nm with surface cooing. The continuous current at standstill is 32.2 Amps with natural convection and 34.3 Amps with surface cooling. Moment of inertia of the motor rotor is 0.00042 kg m². The rated motor speed is 3000 RPM. The output data outlined in the product manual are achieved under the following conditions: 0 to +45 degrees Celsius ambient temperature and 0 to 1000 meters installation elevation. The motor power connection is on side A of the housing.
