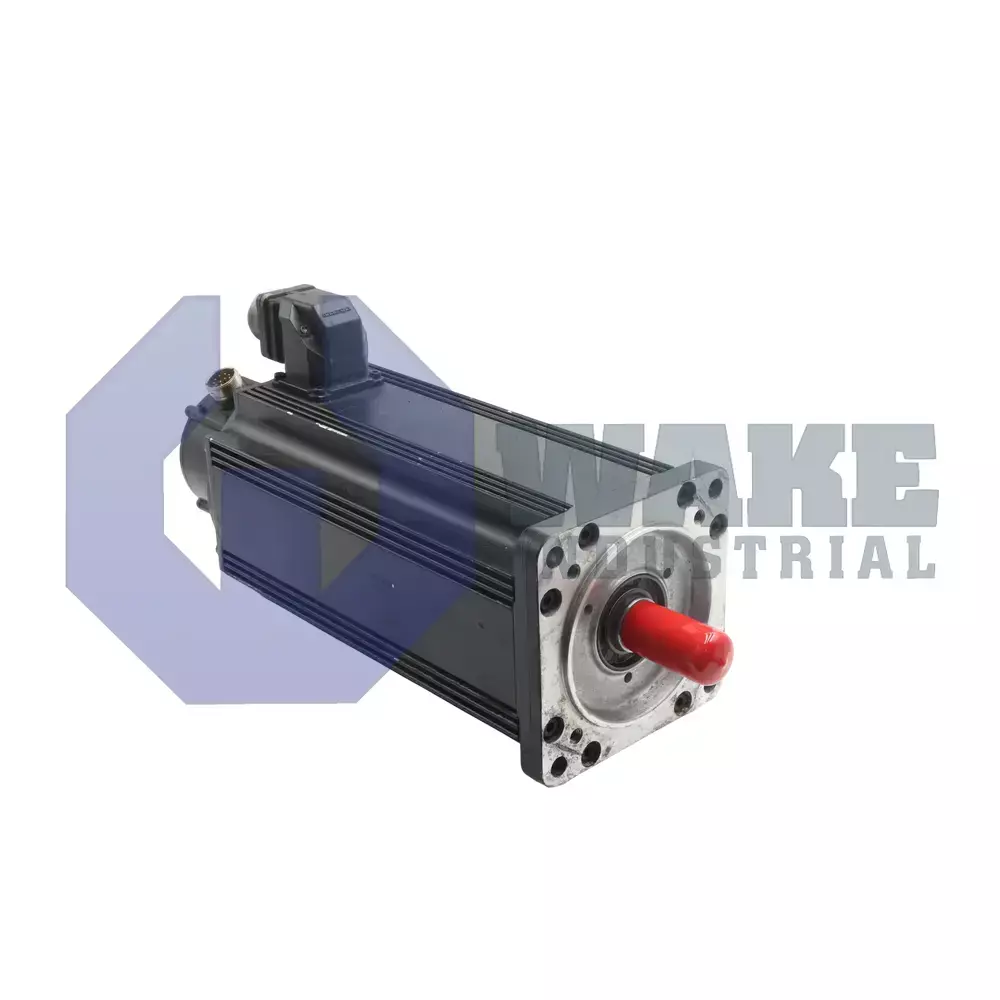

MDD093C-F-060-R2L-110GB0

Product Description

The MDD093C-F-060-R2L-110GB0 digital AC servomotor should not be used on its own without the associated drive controller. The Bosch Rexroth motor is best recommended for highly dynamic applications like roller feeds. This product supports usage under poor environmental conditions. The device features efficient heat dissipation from the walls of its stator to the external wall of the motor housing. The unit houses a floating bearing on the A side that is capable of absorbing the radial forces. Its feedback helps in detecting the rotor position. The motor shaft is positioned on the A-side. The product has a black coating that is resistant to diluted acids and lyes on its housing.

The device installation in vertical orientation is possible with the shaft facing downward or upward. The unit has a 6000min^-1 nominal motor speed. Its shaft sealing ring offers partial protection against the entry of liquids into the housing along the shaft. The motor can have either an angled or straight feedback connector. This device gets shut down automatically when its temperature sensor senses a very high temperature. The unit supports the fitting of a blower that must be bought separately. Its permissible radial force is based on the point where the force is applied and its average speed.

The motor parameters are stored in the drive after it is powered up each time. The product portrays the S1 continuous operating cycle. This device portrays Class F insulation. The unit can be started and stopped continuously with high repetition rates. Its relative indirect position is recorded in the encoder data memory as well as the controller. The motor is free of any blocking brake. The product portrays lower performance than intended when the operating conditions are above the ambient limits. This servomotor with its one-year warranty tag is delivered through a trustworthy logistics team like FedEx or DHL.
