MDD093B-N-040-N2L-110PA1

Product Description

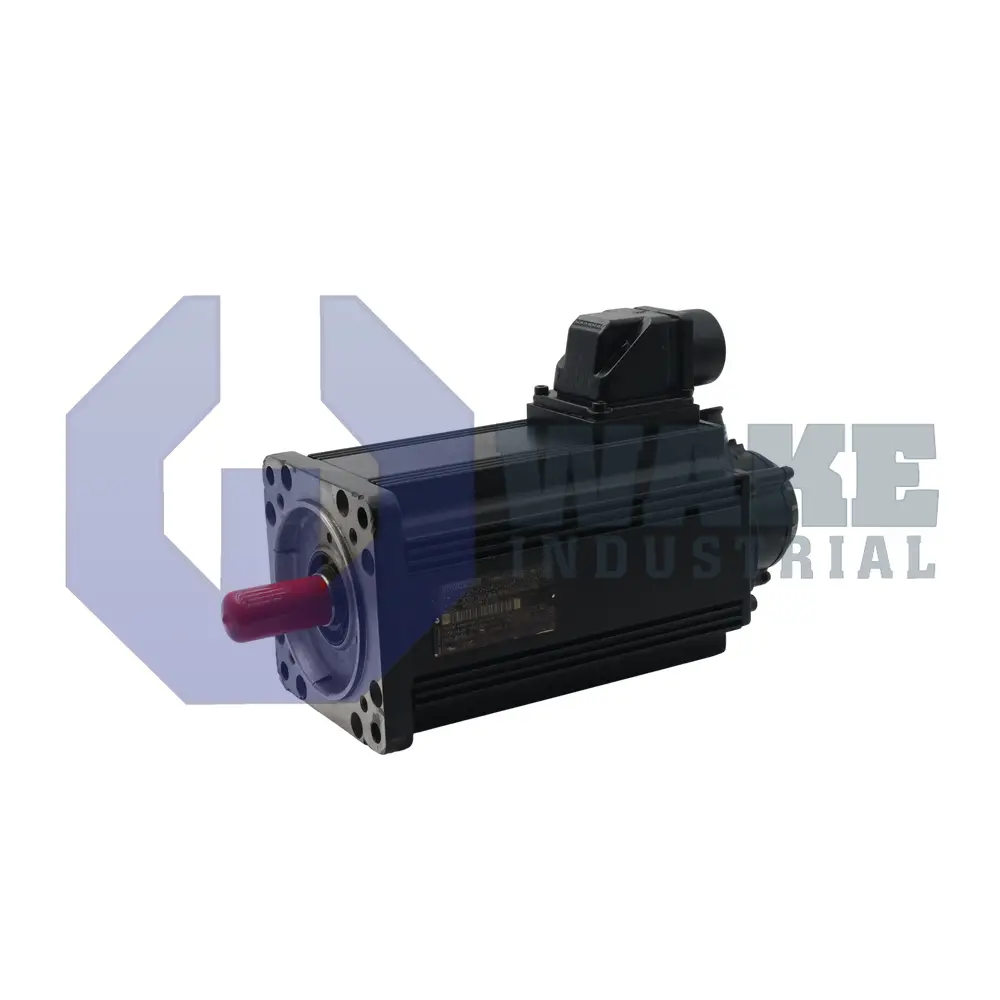

The Bosch MDD093B-N-040-N2L-110PA1 is a digital AC servo motor. It is part of the MDD product line which is comprised of nine motor series with different continuous torques and speeds. Because of very high power density, the MDD093 series is suited to applications such as tool changing devices, and nibbling and punching machines. The MDD093B-N-040-N2L-110PA1 motor includes several integrated features including a blocking brake, output shaft with keyway, a housing that it suited to natural convection or surface cooling and digital servo feedback. The motor connector to which the power cable connects is on side A of the motor housing. Centering diameter of the MDD093B-N-040-N2L-110PA1 motor is 110 millimeters. The motor mounts through four holes on the flange. The size of the flange is 140 millimeters. The diameter of the motor shaft is 24 millimeters.

The length of the motor housing is approximately 327 millimeters. The weight of the MDD093B-N-040-N2L-110PA1 motor is 16.5 kilograms. The nominal motor speed is 4000 RPM. The continuous torque at standstill with convection cooling is 14.5 Nm. The continuous current at standstill with convection cooling is 36.6 Nm. The continuous torque at standstill with surface cooling is 20 Nm. The continuous current at standstill with surface cooling is 50.5 Nm. The blocking brake is based on the principle of electrically-actuated release: the brake operates at 24 Volts DC. The brake holding torque is 11 Nm and its weight is 0.5 kilograms. The MDD093B-N-040-N2L-110PA1 housing is IP65 rated. The motor operates as per manufacturer specifications at 0 to 45 degrees Celsius temperature and 0 to 1000 meters altitude. The handling and operation of the MDD093B-N-040-N2L-110PA1 should only be carried out by trained personnel.
