Product Description

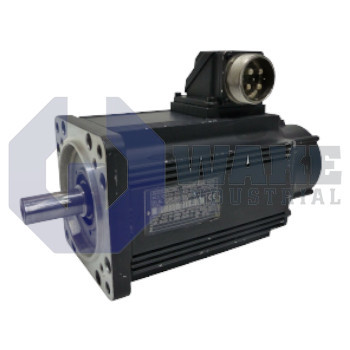

MDD093A-N-060-N2L-110PA0 is a Bosch Rexroth servo motor. It belongs to the MDD product line. MDD motors have a brushless design and come with bearings lubricated for their complete operational life. As a result, MDD motors are maintenance free, which reduces total cost of ownership. In addition, MDD motors belong to IP65 protection class: the motor housing is fully sealed and provides excellent protection against dust and moisture. MDD motors support multiple cooling methods. The MDD093A-N-060-N2L-110PA0 is motor that operators can use with either surface cooling or convection cooling. Surface cooling requires installation of a cooling fan, which increases the system cost. However, it enables higher rates of heat dissipation which allow the motor to deliver higher levels of output current and torque. Convection cooling is a lower cost option, which enables lower output current and torque.
The ambient temperature specified by Bosch which allows rated output for MDD motors is 0 to 45 degrees Celsius. Output of the motor derates outside this temperature range. Additionally, output of the motor derates if the site elevation is less than 0 meters or is more than 1000 meters. Motor operation under non-permitted ambient condition voids the product warranty and can lead to equipment damage and injury. Bosch does not accept liability for damages or injury occurring due to improper use of its industrial products. Nominal speed rating of the MDD093A-N-060-N2L-110PA0 motor is 6000 RPM. The motor has a shaft with keyway, which complies with DIN 6885-1. It supports digital servo feedback, which enables use in combination with a compatible servo controller. Centering diameter of the servo motor is 110 millimeters. The power connection is on side A of the housing.
