Product Description

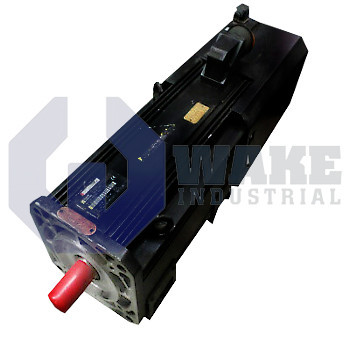

Bosch Rexroth manufactures the MAD180D-0150-SA-S2-EQ0-35-N1 servo motor. When fitted with the standard bearing, the motor may reach a maximum speed of 6000 min^-1. 794 Nm and 109.48 kW, respectively, are the motor's maximum torque and power outputs. A bus voltage of 540 VDC is required to produce this maximum power. The motor can take in a maximum of 220.8 A of current to attain its maximum power. The motor can constantly draw 112.3 A of current and create 330 Nm of torque while it is at a stop. According to the motor's torque constant of 3.72 Nm/A, 3.72 Nm of torque is generated for each amp of current that passes through it.
The motor's thermal time constant, measured under rated load circumstances, is 45 minutes. In that time, the motor reaches 63% of its ultimate temperature. The motor takes ten minutes to attain thermal equilibrium in periodic intermittent duty (S6) mode, which is the length of the cycle. The motor's discharge capacity, or the capacitance of the motor's power connections to the housing, is 35.9 nF. At a rated speed of 1500 revolutions per minute (rpm), the servo motor is intended for continuous operation. It produces 53.40 kW of rated power output and 340 Nm of rated torque under these circumstances.
The motor needs 107.4 A of phase current. It needs a power wire cross-section of 25.0 mm^2 and is built with two pole pairs. The servo motor's other specs are as follows: its mass is 403 kg, its rotor moment of inertia is 0.594 kgm^2, and its sound pressure level is 78 dB(A). As per DIN EN 60034-1, the motor has an insulation rating of 155 and is intended to function in the temperature range of 0 to 40 degrees Celsius. We offer a one-year warranty with this device.
