Product Description

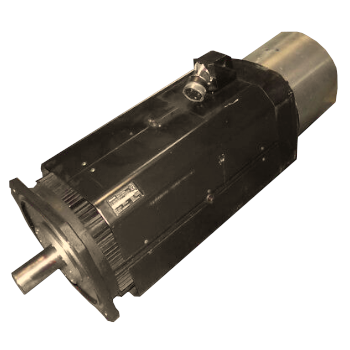

Crafted by the industrys leading servo motors manufacturer Bosch Group the MAD160C-0100-SA-S2-AH0-35-A1 Is part of the MAD series which is an asynchronous box motors with squirrel cage rotor equipped with surface ventilation by solidly connected fan unit. Many advanced features & high-power outputs coupled with a compact design makes it ideal for many applications throughout industries like machine tools for main spindle or servo drive paper processing machines, packaging machines and metal forming machines.

The surface ventilation is made possible by an axial fan blowing. Air current of blower is B to A. The power consumption of blower is 132 to 175 VA. The fan current is 0.19 to 0.21 A. It has an IP 65 rating & the motor is manufactured using CU, CuZn39Pb2. housing paint of the motors consists of a black (RAL9005) 2K epoxy resin coating based on epoxy polyamide resin in water. The motor size is 160. It has a weight of 238 kgs and the moment of inertia is 0.311 kgm2. The discharge capacity is 24.4 nF. The winding is ?100?. The rated torque is 225 Nm & the rated power is 23.6 Kw.

This model has a plain shaft & without a shaft sealing ring to prevent water damaging the motor. The mounting style is a flange & mounting. This model does not feature a holding brake. Permitted axial load stands at 50 N. The speed at which motor is rated is 1000 rpm & the key speed is 500 rpm. A warranty period of 1 year is offered with this specific model.
