Product Description

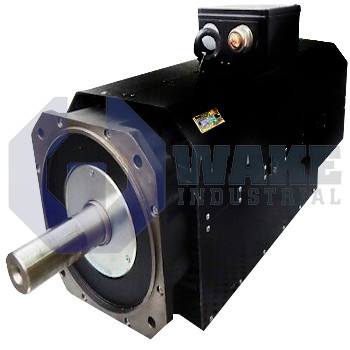

The servo motor MAD130D-0200-SA-M2-AP5-35-N1 is manufactured by Bosch Rexroth. With a rated torque of 150 Nm and a rated power of 31.40 kW, the servo motor is intended to run constantly. A rated speed of 2000 min^-1 and a rated current of 71.3 A are used to accomplish this performance. Because the motor does not derate, its torque and power are constant up to the speed at which it is rated. The MAD130D-0200 motor has a maximum torque of 340.7 Nm under certain circumstances. It may also securely run up to a maximum speed of 7500 min^-1 when combined with bearing type N.

These maximum values demonstrate the motor's versatility in meeting applications with different torque and speed requirements, even beyond its continuous working point. The highest power output (PS6max) that the MAD130D-0200 motor can produce is 64.37 kW. This is the maximum power the motor can produce under certain operating circumstances, usually when the bus voltage is 540 VDC. The motor draws a maximum current (Imax) of 137.0 A at this peak performance, which is the maximum current that may be used for brief periods without endangering the motor's winding.

At a standstill (Mn1), the motor continuously displays a torque of 155.0 Nm. This indicates that even when it is not moving, the motor can constantly provide this torque. For the motor to reach this stationary torque, a constant current (In1) of 72.8 A is needed. The link between the torque generated and the current passing through the motor is shown by the torque constant at 20 °C (KM_N), which is 2.62 Nm/A. Finally, under a rated load, the motor takes 30.0 minutes to attain 63% of its ultimate temperature increase, which is represented by the thermal time constant (). If you purchase from us, you will receive a one-year warranty.
