Product Description

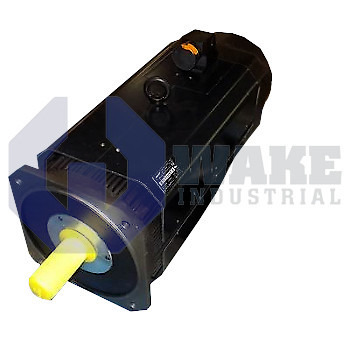

Designed to provide dependable power and efficiency, the MAD130D-0150-SA-M2-RH1-05-N1 is a high-performance industrial motor. Operating at a rated velocity of 1500 revolutions per minute and with an assessed torque of 155 Nm, it generates an assessed power of 24.3 kW & a rated current of 61.5 A. With a speed of 1000 revolutions per minute (derating) and a constant current at standstill of 64.1 A, the rotor keeps a torque (continuous) at 170 Nm. At 20 Celsius its constant torque is 3.09 Newton-m/A & its peak speed is 375 Nm. Three pole pairs on the motor improve its operational efficiency.
Running at 48.9 Amperes, the motor maintains a constant torque of 125 Nm at still using a constant current of 51.0 Amperes. With a steady torque of 3.1 Nm/A, the rotor can achieve a maximum torque of 275 Nm at 20 C. The rotor features a moment of inertia corresponding to 0.115 kgm_ & a steady thermal time rating of 50 minutes. With an authorized brake energy rating of 30,000 Ws, the motor supports an authorized braking speed of 8000 rpm and runs on a power line with a baseline cross-section of 10 mm_. Designed for grave industrial use, the motor weighs 119 kg.
Given its measured noise level of 70 +/- 3 deciBels (A), the rotor is appropriate for situations with tight noise constraints. Operating within a span of 0 to +40 Celsius, it may be transported or kept at temperatures within 0 and +80 degrees Celsius. The motor must only be used in approved mixtures with approved accessories & components if safe and effective performance is required. Qualified persons obeying all safety and technical standards should handle assembly, installation, & operation. For demanding industrial uses where precision & lifetime are paramount, the sophisticated design & dependability of the MAD130D motor make it perfect.
