Product Description

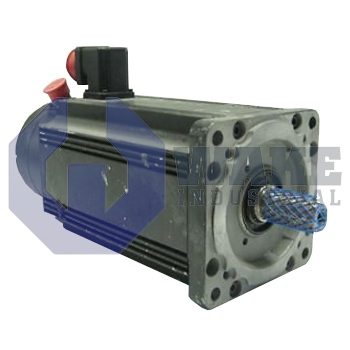

MAC093 motor is a sub-product of the main MAC AC servo motor drives series which is developed by Rexroth, Indramat. It is a top-notch company in designing and manufacturing highly advanced industrial parts known for its reliability, robustness and durability. The AC motor drives of the MAC series are with operational reliability, high output performance and require ideally no maintenance. It is protected with the best international protection standards and protected from overheating damages due to extreme load conditions via cooling mechanism.
Furthermore, the motor’s performance is highly dynamic due to favorable torque-inertia ratio. The overloading capacity of the motor is high too. It is due to the dissipation of heat from motor to outside environment. The compact design of the motor offers high power to weight ratio. The MAC series drives offer simple and easy commissioning. The series is utilizing surface cooling mechanism to protect the motor from over-heating due to extreme loads conditions. The motor is encased with a black prime coat which protect it from weathering, yellowing, chalky build ups, acidic attacks and lye.
Decoding the part number of MAC093B-0-GS-4-C/110-A-2/WI530LX/S007 is the motor for the analogous drives with 093 as the motor size and the B as the motor length. The 0 specifies the cooling mechanism that is natural convection. The GS is the winding type for which the rated speed is 4000 rpm. Symbol 4-C defines the motor feedback as tachofeedback with standard tacho type operation and with an additional mounted encoder either incremental or absolute value. The 110 is the centering diameter and A is for the power connection to the side A of the motor.
