Product Description

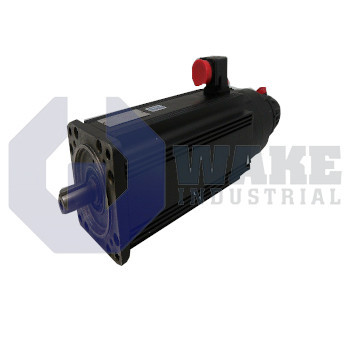

The MAC090C-0-GD-4-C/110-B-0/WI534LX servomotor provided by Bosch Rexroth has to be wired as per the terminal diagrams of the associated machine manufacturer. This servomotor has a 0.43Nm/A torque constant at 20°C. The product uses thermos switches in its stator housing and windings to monitor its temperature and avoid overload damage. This device has a favorable torque-to-inertia ratio because of its high dynamic performance. The unit has an incremental encoder mounting and tacho feedback of high resolution. Its encoder has a code of 534. The motor supports the application of high radial loads because of the way the motor is designed. This product absorbs axial forces with its B side.
The device features a mounting flange with windings for Design B14 mounting. This unit encompasses black paint that is resistant to weathering, chalky buildups and yellowing on its housing. Its load factors are to be multiplied on exceeding the ideal operating conditions. The motor has 60 minutes thermal time constant. This product uses power cables that can either be crimped or soldered if it has inch diameters. The device can never be used for residential requirements. This unit has 120mA current consumption and a 5V +/-5% voltage source for the sinusoidal signal generated by the incremental encoder. The servomotor features a backup support period of one year.
This product replacement action can be executed only after checking the associated reference point settings. The device comes along with a flange socket featuring 12 pins to connect the feedback as well as an encoder. The unit has 0.24 Ohms winding resistance at 20°C. Its rotor has 53 x 10-4 kgm2 moment of inertia. The motor portrays a high power-to-weight ratio because of its compact construction. This product’s start and stop actions can be done continuously with high repetition rates because of electronic commutation and high cyclic load capacity. This MAC090C-0-GD-4-C/110-B-0/WI534LX servomotor is packed in rugged packaging to avoid transportation damage.
