Product Description

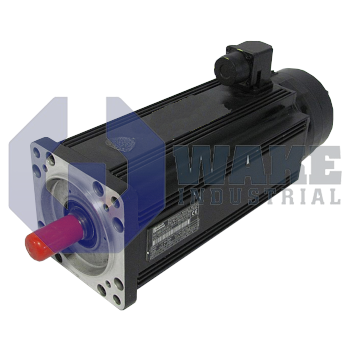

The Rexroth MAC090B-0-JD-4-C/110-B-0/WA612XX servo motor is a highly reliable component designed for various industrial applications. With a nominal speed of 3000rpm and constant torque of 8.5Nm, this servo motor gives its best performance. The motors resolver feedback system provide enhanced position accuracy making it ideal for applications such as robotics and CNC machineries. It features tacho feedback system with a mounted incremental and absolute encoder, ensuring precise controller and feedback. The tacho voltage is set to the nominal voltage speed of 1.5V per 1000rpm or 3 V per 1000rpm. The tacho is of standard type and is provided with a power connector on the B-side and a shaft with a key way providing secure connections and minimizing maintenance requirements. The Rexroth MAC090B-0-JD-4-C/110-B-0/WA612XX relies on natural convection cooling system, thus it must be installed on places with temperatures below 40 degrees Celsius above sea level of about 1000m.

The MAC090B-0-JD-4-C/110-B-0/WA612XX weighs 18kg and has its dimensions 190mm by 445mm thus making it more compact and convenient to handle. This motor is protected by the IP 24 protection category for the blower unit and the IP 24 protection category for the blower motor, ensuring durability. This Rexroth MAC090B-0-JD-4-C/110-B-0/WA612XX servo motor is not equipped with holding brakes, thus using these types of servo motors in industrial applications where conveyor systems and load lifting processes are performed could be difficult.

The MAC090B-0-JD-4-C/110-B-0/WA612XX servo motor ensures efficiency by having winding resistance at 20 degrees Celsius of 0.5 ohms while the winding inductance of 2.0mH, resulting in a minimum electrical loss. It's thermal time constant is 30 minutes ensuring minimal heat dissipation during operations.
