Product Description

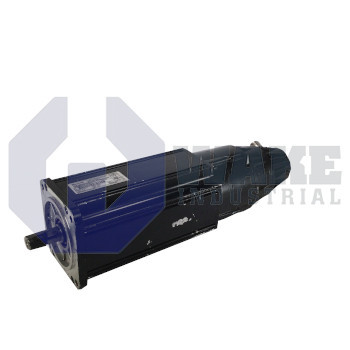

Rexroth Bosch Group developed this sophisticated and high-performance solution for analog drive applications. The MAC071C-0-US-4-C/095-B-0/WI648BX/S001 is engineered with precision; this motor is part of the MAC series, which is renowned for its reliability and versatility in various industrial environments.
Using natural convection for cooling the motor operates efficiently without the need for additional cooling mechanisms, making it suitable for applications where thermal management is a critical consideration. Optimized for installations where space is limited but high performance is required, this motor features a compact size 071 and a length of C. The motor's torque constant is 0.900 Nm/A at 20°C, indicating high efficiency in converting electrical current into mechanical torque. Its windings have a resistance of 1.6 Ohms and an inductance of 15 mH, supporting stable operation. The tachometer voltage is set to the motor’s nominal speed, while the incremental encoder provides standard mounting for easy integration.
Offering a precise control the motor is equipped with both tacho feedback and an incremental or absolute encoder. With a nominal motor speed of 2000 rpm, the machine delivers consistent execution. The motor’s continuous current at standstill is 7.3 A, with a maximum peak pulse current of 37 A, ensuring robust performance under varying operational conditions. It provides a continuous torque of 6.6 Nm at standstill, with an impressive peak torque capability of 9.9 Nm, which is ideal for applications requiring high torque output. Weighing 11 kg, this unit is compact yet powerful, making it the best choice for a wide range of analog drive applications. With a rotor moment of inertia of 12.9 x 10^-4 kgm^2 and a thermal time constant of 45 minutes, this motor ensures quick response and thermal stability. This motor stands as a testament to precise working and reliable performance.
