Product Description

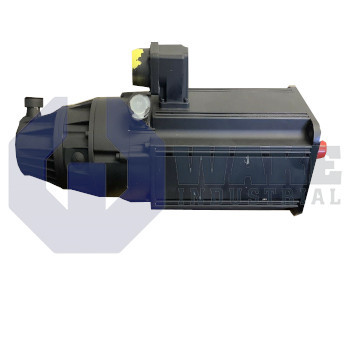

The MAC071C-0-US-4-C/095-A-0/WA612XX/S001 belongs to Bosch's MAC series of AC servo motors. Renowned for their exceptional quality and versatile configurations these motors are ideal for a wide range of applications. They excel particularly in printing presses, machine tools, and textile machinery. Ambient temperature of 0-45 C is the permissible working condition. These motors are manufactured in such a way that allows for easier repair & service. The mass of this motor is 11 kg
This model has a motor feedback system type is mounted incremental or absolute encoder to measure accurate positioning and motion of servo axes. The MAC071C-0-US-4-C/095-A-0/WA612XX/S001. The cooling in this model is made possible by natural convection. Some special design features are part of this motor as well. Bundling a warranty period of one year.
The motor length is C. It features only one pilot diameter for flange mounting the standard 95 mm. The power output directions is set in side A. The standard motor velocity stands at 2000 rotations per minute. This motor does not include a holding brake although standard, heavy duty & extra heavy-duty blocking brake of 22 Nm are various options offered. At rest, the continuous torque is measured at 6.6(9.9) 5 Nm. The rotor's inertia is quantified at 12.9 x 10-4 kilograms per meter squared. The IP 65 rating & black primer paint (RAL9005) on the housing will protect it from external harm. The motor is protected by insulation class F.
