Product Description

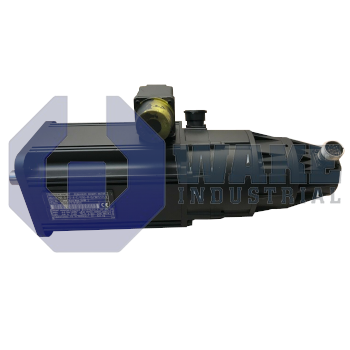

The MAC071B-0-TS-4-C/095-B-1/WA612XX is a special type of MAC servo motor that weighs 8.8 kg with a nominal rpm of 3000 min-1. The cooling method of this variant 071 B-0-TS is a natural convention method and the electrical connector used for power is INS 108/06. The motor power cable type is INK 253 with an area of 0.75 mm2. The INK 253 has a power cross-section area of 1 mm2 and a control core cross-section area of 0.5 mm2.
The power cable cross section is 10.3 with a variant of 0.3 mm. The overall weight of the power motor cable is 0.11 kg/m. The minimum bending radius of the MAC servo motor power cable under standard INK 253 is 65mm for fixed routing. The insulation classification is IP 65 and the maximum installation of this variant MAC servo motor is 1000 meters above the sea. The power is connected to side B. The MAC servo motor MAC071B-0-TS-4-C/095-B-1/WA612XX comes with standard blocking brake of 3 Nm. The MAC servo motors are equipped with motor feedback for the evaluation of position and speed and for the detection of rotor position. The motor feedback of this series is with tacho feedback and mounted incremental or absolute encoder.
The motor primarily consists of a stator and rotor, where rotor winding is also referred to as armature winding. The electric current in the rotor produces torque, and this variant has a torque constant of 0.6 Nm/A. The current is due to the electromagnetic induction from the magnetic field of the stator winding. Losses in winding can lead to less efficiency of the motor. The winding inductance of MAC 071B-*-TS is 10mH, and the winding resistance near to room temperature is 1.24 ohm.
