Product Description

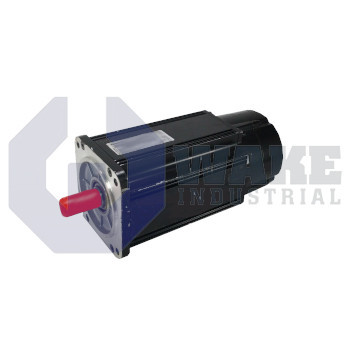

The MAC series is a line of premium AC servo motors motor manufactured by Bosch group, MAC071B-0-TS-4-C/095-A-0/WA612XX is a part of that series. It comes with user configurable options that makes suitable for various jobs. It is best suited for textile, printing presses and machine tools. Connector to side A, side B, to the left, to the right are the four power output directions offered. The favourable working conditions of this specific motor are ambient temperature 0-45 C & 1000 meters above sea level.
This unit is protected with a black primer paint coating, specifically RAL 9005, ensuring robust external protection. Its IP 65 rating further guarantees resilience against external elements, making it suitable for a variety of environments. The MAC071B-0-TS-4-C/095-A-0/WA612XX. Its power output direction is directed to side A This AC motor has a winding resistance of 1.24 ohm. The winding inductance is 10 MH. The maximum peak of pulse current is 37 A. Moment of inertia of the motor is of the motor is at 9.9 x 10-4 kgm2.
This model features a motor feedback system with tacho-feedback it ensures accurate movement of the servo axes. The tacho voltage matches the nominal motor speed. The voltage constant of the tachongenator is 0.0143 Vs/rad. To ensure backlash-free holding of servo axes, a blocking brake of 6.5 Nm or 14 Nm blocking brake can be equipped. For cooling in heavy-duty load scenarios, the surface cooling options are axial or radial cooling, although this specific model relies on natural convection. This motor includes a 1-year warranty.
