Product Description

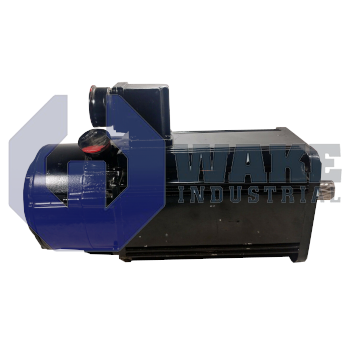

The MAC071B-0-FS-4-C/095-A-0/WA610XX/S001 AC servo motor from Rexroth is designed to be used in applications that require precise position control. With tacho feedback and mounted incremental encoder, the MAC071B-0-FS-4-C/095-A-0/WA610XX/S001 AC servo motor can detect speed changes and alter the motor's torque output as needed, resulting in faster response times and better tracking of velocity commands. This AC servo motor can reach a maximum speed of 2000 rpm, making it the slowest servo motor in the entire MAC series.
Like most servo motors in the MAC series, the MAC071B-0-FS-4-C/095-A-0/WA610XX/S001 AC motor relies on the natural convection cooling method so it needs to be placed in an environment with better airflow and an ambient temperature of 0 to 45 degrees Celsius. Since the MAC071B-0-FS-4-C/095-A-0/WA610XX/S001 relies on the natural convection cooling method it is recommended that it be installed at an altitude of 1000 meters above sea level as reduced air density can affect the overall performance of the servo motor. This motor is also IP 65 certified keeping it protected from dust particles and water jets. The motor can also be operated under humid conditions with a maximum humidity of up to 95%
Talking about the design of the MAC071B-0-FS-4-C/095-A-0/WA610XX/S001, this servo motor has a motor size of 071 with length B. The motor also has a power connector on side A which is on top and outwards towards the shaft of the motor making it easy to install in tight spaces. The design also has a special option on the shaft featuring a keyway as per DIN 6885 standards. This special option allows the shaft to have groves or slots so that a small coupler can be used to attach or connect components to rotate and transmit torque.
