Product Description

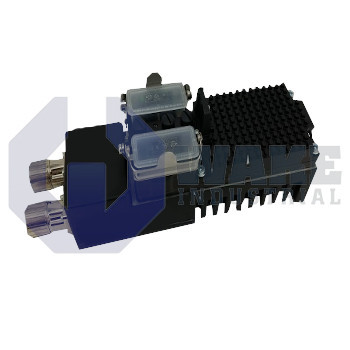

The Bosch Rexroth KMS02.1B-A018-P-D7-ET-ENH-L3-WE-FW is a near motor servo drive. It belongs to IndraDrive Mi product family. Components of IndraDrive Mi system include KSM02 motor-integrated servo drives, KMS02 / KMS03 near motor servo drives, KCU02 drive connection box, KMV03 supply unit, KNK03 mains filter and KLC03 DC bus capacitor unit. Components of IndraDrive Mi product range allow systems to be deployed without any control cabinet. A KMS02 near motor servo drive consist of a control section and a power section. The KMS02.1B-A018-P-D7-ET-ENH-L3-WE-FW is a KMS02 series near motor drive with basic performance. Maximum current rating of the drive is 18 Amps. The nominal DC bus voltage is 750 Volts DC. The housing protection rating is IP65. The drive housing is designed for cooling through natural convection. Encoder interface on the drive is Hiperface.
Master communication interface on the KMS02.1B-A018-P-D7-ET-ENH-L3-WE-FW is Multi-Ethernet. The drive supports the safe torque off safety option. The motor and encoder connection has an angular connector. Firmware for the drive needs to be ordered as a separation subposition. Ambient temperature range for operation with nominal data is 0 to 40 degrees Celsius. The control voltage range is 30 to 42 Volts DC and control power consumption is 17.5 VA. For the power section on the KMS02.1B-A018-P-D7-ET-ENH-L3-WE-FW the short circuit current rating is 42000 Amps rms, the rated input voltage is 540 to 750 Volts, the DC bus capacitance is 0.02 millifarads, the rated input current is 7.3 Amps, the allowed switching frequencies are 4 kilohertz and 8 kilohertz, the maximum bypass current is 25 Amps and the power dissipation at continuous current is 50 Watts. The drive weight is approximately 2.5 kilograms. This unit can be shipped globally with a one-year warranty period from Wake Industrial.
