KDS 1.1-100-300-W1

Product Description

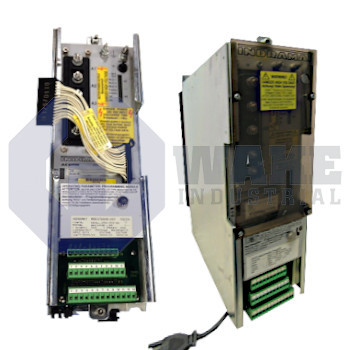

The KDS 1.1-100-300-W1 Bosch Rexroth servo drive is one of the several such drives in the KDS series from the manufacturer. This drive deploys cold-running technology. The product must never be installed outside a control cabinet. This device has a terminal strip on its X25 and X26 connectors for the user inputs and outputs. The unit is designed for use with the manufacturer's MAC range of motors. It must be commissioned before putting it to use. This drive has a high mains voltage at its L1, L2, and L3 terminals. The product must be operated only after ensuring that the emergency stop switch of the associated machine is working as intended. This device should be in standstill mode before entering or working in the danger zone. The unit is equipped with extensive safety features. It must be taken care to ensure that the personnel operating the drive are protected against contact with its hot parts. This drive controls and monitors the holding brake of the connected motors. The product is cooled by air circulation through a fan. This device comes with a diagnostic display for fault diagnosis. The unit features a TU contact that remains closed when there is no fault during the operation. Its green-colored power LED portrays a steady illumination when the power voltage is present. This drive is assembled using the M1-KD mechanical assembly kit. The product portrays Class C insulation in accordance with DIN VDE 0110 specifications. This device should not be used for applications that are not supported by the manufacturer.
