Product Description

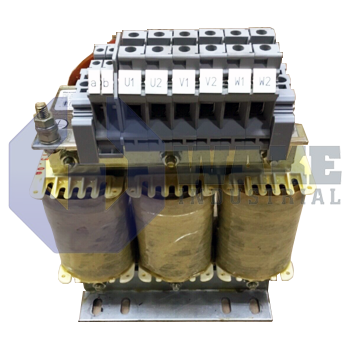

The HNL01.1R-0590-C0065-A-480-NNNU mains choke is a unique industrial accessory created by Rexroth Indramat for application in industrial production systems. This choke is designed specifically for the HCS frequency converters especially when these converters are to be applied in residential areas. The HNL01.1R-0590-C0065-A-480-NNNU mains choke increases the efficiency of industrial production systems by assisting the HCS converter series to achieve higher continuous power in the DC bus, it also helps to prevent circuit feedback in the industrial servo system. This frequency converter connects to the mains through a three-phase electrical connector, it operates with a nominal inductance of about 590 microhenry and nominal current of about 65 Amperes.
The maximum permissible ambient temperature at which the HNL01.1R-0590-C0065-A-480-NNNU frequency converter can be operated is 40 degrees Celsius, operating the converter at an ambient temperature high that can cause to overheat leading to a significant reduction in the efficiency of the controller. The mains choke is specially structured to allow for easy installation into any position in the industrial environment. The maximum height at which the choke should be installed is 1000 meters above sea level. All electrical cables connected to this controller should be properly shielded to reduce electrical interference to the lowest minimum. The rated voltage required for the operation of the HNL01.1R-0590-C0065-A-480-NNNU mains choke is 500 volts.
The HNL01.1R-0590-C0065-A-480-NNNU frequency converter can generate a leakage current of about 3.5 milliamperes, thus it should be securely connected to the grounding system of the drive controller to prevent electrical accidents. To protect the integrity of the HNL01.1R-0590-C0065-A-480-NNNU mains choke, the choke should be regularly cleaned to prevent the build-up of dust and other foreign particles that can interfere with the operation of the device. This unit can be shipped globally with a one-year warranty period from Wake Industrial.
