HNF01.1A-F240-E0202-A-480-NNNN

Product Description

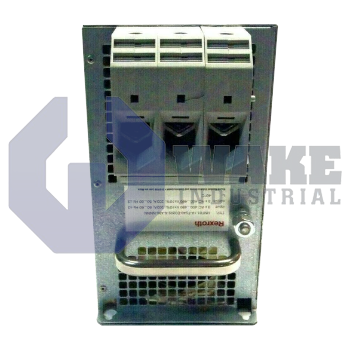

The HNF01.1A-F240-E0202-A-480-NNNN mains filter manufactured by Bosch Rexroth is used with the HMV and HCS converters. This product features a protection rating of IP 20 in accordance with DIN EN 60529 specifications. The accessory features optimal coordination with power units. It helps in ensuring that the generated leakage current due to line capacitance is suppressed. The three-phase device is scalable with respect to motor cable length, the number of drives, and current. The unit has a nominal current rating of 202A. The filter is backed by a one-year industrial warranty.

This mains filter is one of the several accessories of drive controllers from Bosch Rexroth. The product has a design code of 1 and a series code of 1. The filter is intended for operation in Category C3 industrial areas that conform to DIN 61800-3 specifications. This unit can be connected with shielded motor cables to render a trouble-free operation. The accessory weighs 29kg and is used in six-axis drive controllers and can be connected with cables that have a maximum length of 240m. The product must be installed and transported correctly for proper operation.

The E type supply system indicates that the mains filter should be operated with rectifier-capable and feeding devices. The input terminals of the HNF product group mains filter have a maximum tightening torque of 30Nm. They also feature a maximum cross-sectional area of 150mm² or AWG 5/0. The product is cooled by natural convection during operation. It features an insulation resistance of 1.18MOhms at 500VDC. The dimensions of this device are 150 x 440 x 262 mm (B x H x T).  The unit also has a power dissipation of less than 238W. The accessory can be used with a maximum of 12 drives. This mains filter can be delivered safely to your preferred address through our dedicated shipping team.
