HNF01.1A-F240-E0051-A480-NNNN

Name: HNF01.1A-F240-E0051-A480-NNNN
Brand: Bosch Rexroth Indramat
Price: 218 USD
Availability: InStock
Rating: 4.5 (23 reviews)

Straightforward Pricing: No Rush Fees, No Credit Card Fees

MPN: R911307937

In-Stock, Ships 1-2 Days

Current response time:

6 Minutes 11 Seconds

The HNF01.1A-F240-E0051-A480-NNNN Mains Filter is manufactured by Rexroth Indramat Bosch. This filter has an Industrial Area EMC Area Per DIN EN and a Feeding Units only supply unit. The nominal current for this mains filter is 51 and the Mains Connecting Voltage is AC 400-480v.

Preparing your secure checkout page...

Description
Revisions
Specs
FAQ

Product Description

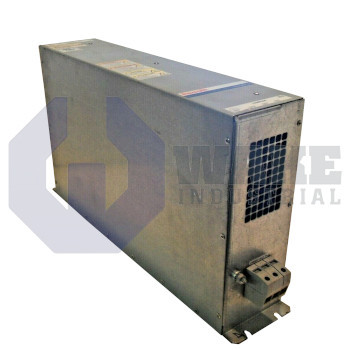

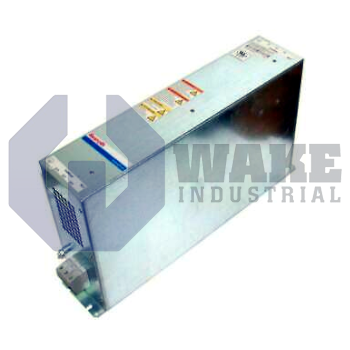

The HNF01.1A-F240-E0051-A480-NNNN is the main line filter developed in the series of HNF Mains Filter by Indramat Bosch Rexroth. As can be made out from the nomenclature this filter has the nominal operating current of 51 amperes and works on the main line voltage of 480 volts.

The HNF series mains filters have been developed specially by Bosch Rexroth Indramat to address the issue of EMC values to be within prescribed norms and also to ensure that there is no leakage caused by the inherent line capacitance. These filters act as suppressants in case of any such leakage and emissions.

HNF01.1A-F240-E0051-A480-NNNN has been designed in keeping with the overall safety requirements of the automation equipment and are within the parameters of application F 240. These filters are scalable and can be optimally coordinated with the values of the factory assigned power units.

For optimum efficiency as well as safety it is important that the given range of parameters as for is voltage and current is concerned are adhered to. If these precautions are not taken it may lead to do not only reduce performance but also damage to the device. Thus, keeping the value of voltage within the normal ranges is crucial to overall efficient functioning as well as safety of the equipment.

Therefore while using HNF01.1A-F240-E0051-A480-NNNN care for being taken that the rated voltage is doesn't exceed the laid out line voltage optimum limit of 480 Volts. It is also recommended by the manufacturer that the other peripheral and additional parts that are used are all compatible and made by the original equipment manufacturer is Indramat, Bosch, Rexroth. This will also give flexibility and easy adaptability in operation besides making the workspace safe.

HNF01.1A-F240-E0051-A480-NNNN Technical Specifications

EMC Area Per DIN EN:	Industrial Area
Maximum Allowable Humidity:	95%
Mains Connecting Voltage:	400 - 480 V
Nominal Current:	51 A
Power Dissipation:	75 W
Weight:	15 kg
Width:	100 mm
Height:	440 mm
Depth:	262 mm
Maximum Elevation Height:	1000 MSL

Frequently Asked Questions about HNF01.1A-F240-E0051-A480-NNNN

Q: What is the nominal operating current and voltage for the HNF01.1A-F240-E0051-A480-NNNN?

A: The HNF01.1A-F240-E0051-A480-NNNN operates at a nominal current of 51 amperes and a main line voltage of 480 volts. It is designed to work efficiently within these electrical parameters for optimal performance and safety.

Q: How does the HNF01.1A-F240-E0051-A480-NNNN address EMC norms and leakage issues?

A: This filter is specifically engineered to maintain EMC values within prescribed norms and to mitigate leakage issues caused by inherent line capacitance. It acts as a suppressant for any leakage and emissions, ensuring compliance and safety in automation environments.

Q: What safety requirements does the HNF01.1A-F240-E0051-A480-NNNN meet?

A: The HNF01.1A-F240-E0051-A480-NNNN complies with the safety requirements of automation equipment and adheres to application F 240 parameters. Its design focuses on ensuring the safety and reliability of the connected systems.

Q: Can the HNF01.1A-F240-E0051-A480-NNNN be scaled and coordinated with different power units?

A: Yes, these filters are scalable and can be optimally coordinated with various factory-assigned power units. This flexibility allows for broad applicability across different automation settings.

Q: What are the risks of operating the HNF01.1A-F240-E0051-A480-NNNN outside its specified voltage and current ranges?

A: Operating the filter outside its specified voltage and current ranges can lead to reduced performance and potential damage to the device. Maintaining these parameters is crucial for the efficiency and safety of the equipment.

Internal Product Review

‘‘The HNF01.1A-F240-E0051-A480-NNNN exhibits exceptional performance in EMC norm compliance and leakage suppression, essential for automation safety and efficiency. Its scalability and adherence to F 240 standards further enhance its utility in diverse settings.’’
