HMV01.1R-W0120-A-07-FNN6

Product Description

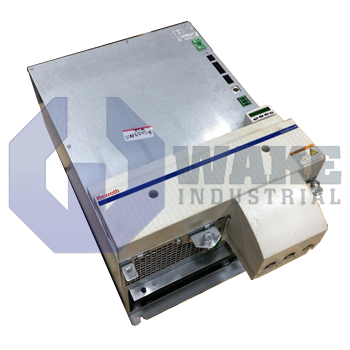

The HMV01.1R-W0120-A-07-FNN6 is a regenerative power supply unit in the Rexoth HMV01 series. It is a line-1 product, and its design is type-1.  This supply unit boasts an internal air-cooling mechanism aided by an integrated blower. The rated output power of the HMV01.1R-W0120-A-07-FNN6 is 120 kW, and its nominal DC-bus voltage is 700 Volts. It weighs 34.5 kg, with dimensions 440 x 262 x 350 mm.

The HMV01.1R-W0120-A-07-FNN6 has a pollution degree of 2, and its ambient temperature when operating at nominal data specifications is 40 degrees C. At derated specifications, the permissible ambient temperature of this equipment is 55 degrees C. The input control voltage of this model is rated at 24 Volts ± 5 %. At the input control voltage rating, the power consumption of the HMV01.1R-W0120-A-07-FNN6 is 224 Watts. Its SCCR is rated at 42,000 A_rms, and it operates at an input frequency of 50 – 60 Hertz. The input current rating of this model of the Rexroth HMV series is 181 Amperes.

The field wiring required for the HMV01.1R-W0120-A-07-FNN6 is made from class-1 copper (Cu), and its conducting temperature is between 60 – 75 degrees C. As per EN 60204-1, the wiring has a cross-sectional area of 120 mm². The output current of this equipment is 160 Amperes, and its output voltage is 750 Volts (as per UL standards). The protection mode of the HMV01.1R-W0120-A-07-FNN6 is IP 20. At the bottom of this equipment, the minimum distance is 334 mm and the minimum distance at the top is 300 mm. It comes with a protection fuse with a branch circuit of 225. At continuous DC-bus power and continuous current, the power dissipation is 2000 Watts. This unit can be shipped globally with a one-year warranty period from Wake Industrial.
