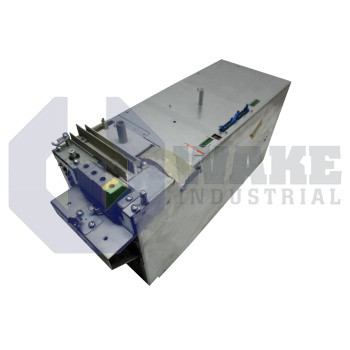

HDS15.2-W300N

Name: HDS15.2-W300N
Brand: Bosch Rexroth Indramat
Price: 240 USD
Availability: InStock
Rating: 4.6 (18 reviews)

Straightforward Pricing: No Rush Fees, No Credit Card Fees

In-Stock, Ships 3-5 Days

Current response time:

5 Minutes 51 Seconds

The HDS15.2-W300N Servo Controller is manufactured by Rexroth Indramat Bosch. This controller is cooled by an Internal Blower, and has a rated current of 15A. This HDS controller is not equipped with Command Communication and the Controller Family is DIAX04.

Preparing your secure checkout page...

Description
Revisions
Specs
FAQ

Product Description

Bosch Rexroth’s automation products represent quality and reliability in the area of motion control. The company’s drive control systems are highly responsive devices for speed and position control.

The HDS15.2-W300N drive controller is used to control the position and speed in industrial motors. The system is widely used in paper printing machinery, metal machining equipment, woodworking machinery, and robotics. The HDS15.2-W300N has been designed to function in conjunction with the MKD and 1MB industrial motors. The drive controller can adjust a motor's speed, torque, and position through its closed-loop feedback system. The system comes with a modular configuration that supports various additional plug-in modules. The system is protected against damage by small-sized objects because of its enclosure that has been designed according to international ingress protection standards. The system can be operated over a wide range of temperatures and can be used in all areas that lie within a 1000 m elevation above sea level.

The HDS15.2-W300N has a 300 A rated current and comes with internal air cooling because it has an internal blower. The device weighs just 4.5 kg and has been made compatible with the main spindle drive and can act as an independent main spindle drive controller. The HDS15.2-W300N has a modular structure. Different functional modules can be added or replaced in the device. The firmware module contains specific drive parameters and has the operating system installed in it. Firmware modules from all HDS15.2-W300N units can be used interchangeably without the need for reconfiguration. SERCOS and ANALOG interface modules are compatible with the system and can be inserted in the communication module slot. For connecting incremental measuring systems with a square wave output, a DEF01.1M card can be used with the system. The HDS15.2-W300N can be shipped to any address globally with a one-year warranty period from Wake Industrial.

HDS15.2-W300N Technical Specifications

Command Communication:	Not Equipped
Maximum Elevation Height:	1000 MSL
Version:	15
Cooling:	Internal with Blower
Rated Current :	300 A
Power Loss:	1200 W
Weight:	25 kg
Insulation Class:	C
Protection Rating:	IP10
Power Consumption for Signal Processing:	55 W

Frequently Asked Questions about HDS15.2-W300N

Q: What are the primary applications of the HDS15.2-W300N drive controller?

A: The HDS15.2-W300N is predominantly used in paper printing machinery, metal machining equipment, woodworking machinery, and robotics to control the position and speed of industrial motors.

Q: Which motors are compatible with the HDS15.2-W300N drive controller?

A: The HDS15.2-W300N has been specifically designed to work in tandem with the MKD and 1MB series of industrial motors.

Q: How does the HDS15.2-W300N adjust motor parameters?

A: The controller adjusts a motor's speed, torque, and position using its sophisticated closed-loop feedback system.

Q: What is the significance of the modular configuration of the HDS15.2-W300N?

A: The modular design allows for the support of various plug-in modules, permitting the addition or replacement of different functional modules without extensive reconfiguration.

Q: Which interface modules can be integrated into the HDS15.2-W300N system?

A: SERCOS and ANALOG interface modules are fully compatible and can be inserted into the communication module slot of the HDS15.2-W300N.

Internal Product Review

‘‘The HDS15.2-W300N offers advanced control for industrial motors with internal cooling. Modular in design, its flexibility ensures compatibility with varied modules and ensures operational efficiency even at high elevations. Highly recommended for industrial applications.’’
