Product Description

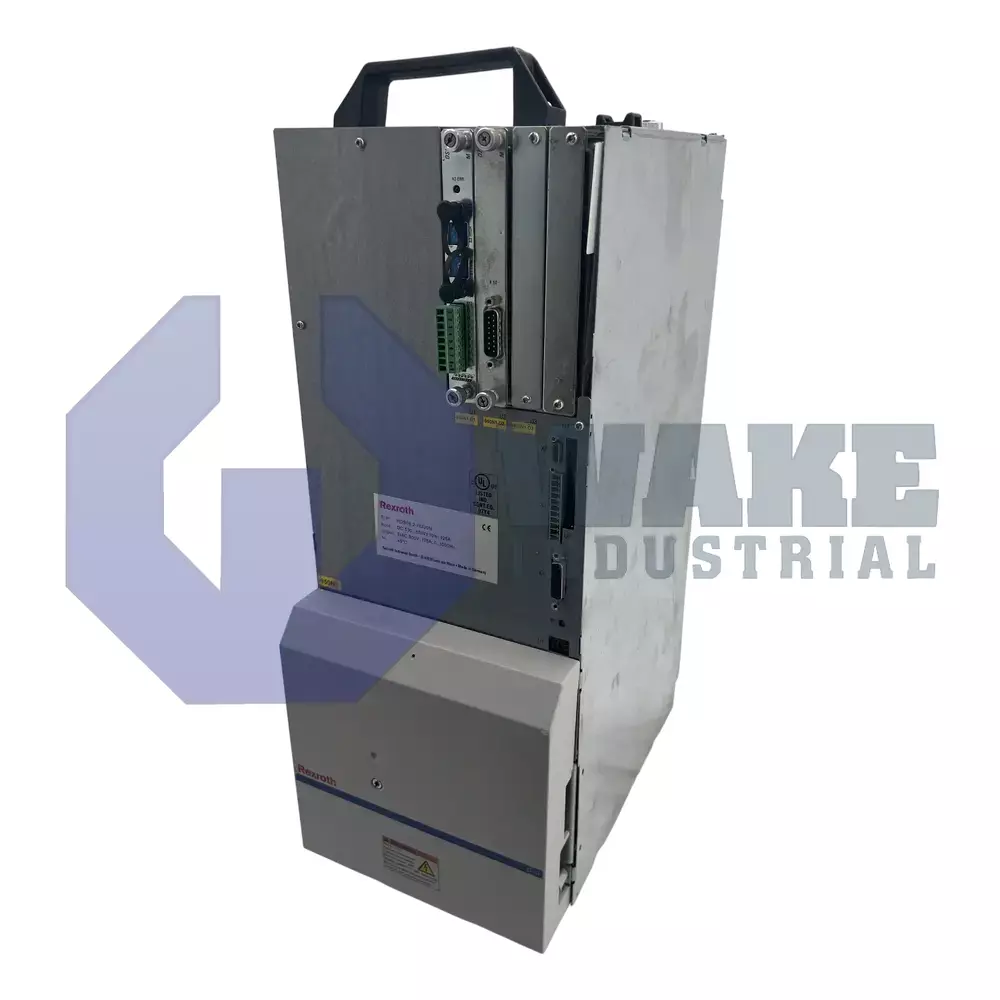

The HDS05.2-W300N-HS37-01-FW is a line 05 and version 2 HDS configured drive controller from Rexroth Indramat. It weighs 25 kilograms and has a rated current equals 300 A. Also, its peak current is 300 A. It features a Serial Real-time Communications System (SERCOS) for high-speed motion control and serial closed-loop communication. The operating mechanism of the HDS05.2-W300N-HS37-01-FW is flexible, and its software module can be configured selectively for specific functions. The parameterized variables on this unit are transferrable to another HDS drive controller via the DSS02.1M software plug-in module.
The design and material build-up of the HDS05.2-W300N-HS37-01-FW conforms with the insulation class C and IP 10 degree of protection. This unit is suitable for single and multi-axis drive control applications. At rated data, the admissible environmental temperature range is within +5 oC – 45 oC. Also, the minimum and maximum installation elevation at rated data are 0m and 1000m ASL respectively. As a safety precaution, do not operate the HDS05.2-W300N-HS37-01-FW when the ambient air is dust-laden, toxic or at extreme temperatures.
With a switching frequency rating of 4 Kilohertz, the Icont (continuous current) of this unit is 175 A, and at 8 Kilohertz, the Icont is rated at 100 A. Also, the Pv (power loss) at Icont is 1200 Watts. The HDS05.2-W300N-HS37-01-FW cools by forced convection via an internally mounted blower. At derated/reduced data, the max. allowable environmental temperature is rated at 55 oC. This unit must be stored under shock-free conditions, and during transit, shock-absorbing should be implemented to reduce the effect of vibrations and excessive shocks. The plug-in modules on the HDS05.2-W300N-HS37-01-FW are prone to damage by electrostatic discharge during transport/storage, and as such, must be preserved in conductive and safe packaging. This unit can be shipped globally with a one-year warranty period from Wake Industrial.
