Product Description
Bosch Rexroth provides worldwide services in the manufacturing and maintenance of different industrial automation equipment. The company’s products such as drive controllers, servo motors, and converters are widely used in international market.

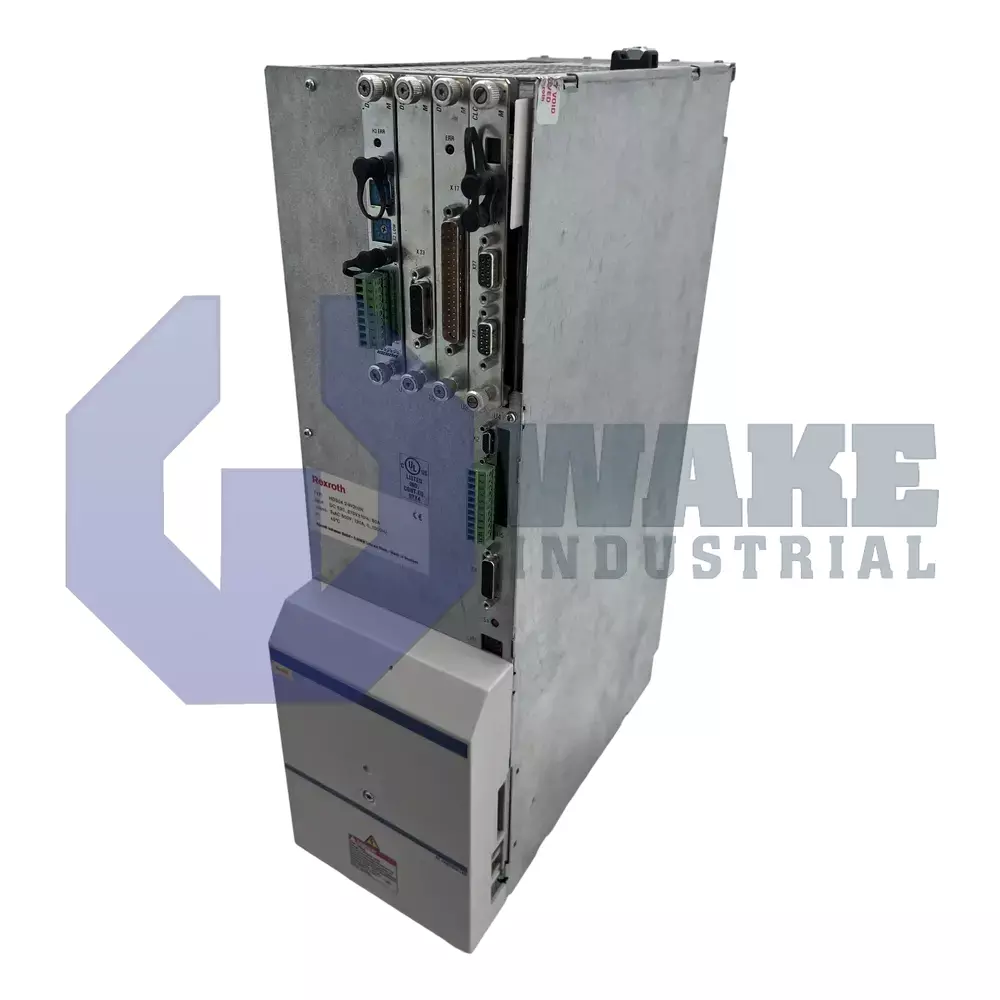

The HDS04.2-W200N-HS34-01-FW model is designed to control and monitor the operations of the electrical motors. The HDS drive controller belongs to the family of Digital intelligent drive system (DIAX04). The model takes electrical connection through the dc-link voltage supplied by the power supply unit. The controller operates at the rated current of 200 A, and the typical applications of the drive controller are handling systems, robots, printing machines, and machine tools. The HDS drive controller with 4 kHz of drive operates at the continuous current of 120 A, and the controller with 8 kHz of drive operates at the 80 A of continuous current. The total power loss of the unit is approximately 800 W. The model uses ambient air for cooling purposes and the total weight of the drive controller is 19 kg. The controller comes with an IP10 protection class therefore it must be mounted into the switch cabinet.
The model HDS04.2-W200N-HS34-01-FW consists of a basic unit (HDS04.2-W200N) and 5 slots for installing different plug-in modules. The model is equipped with a DSS02.1M SERCOS interface for command communication interface and the slot U2 contains DLF01.1M interface card for incremental measuring system. The slot U3 is equipped with DEA04.2M digital interface card for bi-directional exchange of data and the CLC-D02.3M integrated control module is installed into the U4 slot. The HSM01.1 software module is installed into the U5 slot. The ambient temperature range for the drive controller is +5 to +45 degree Celsius and it can be installed at the maximum height of 1000 meters above sea level. The firmware module for this model must be ordered separately. This unit can be shipped globally with a one-year warranty period from Wake Industrial.
