HDS04.1-W200N-H

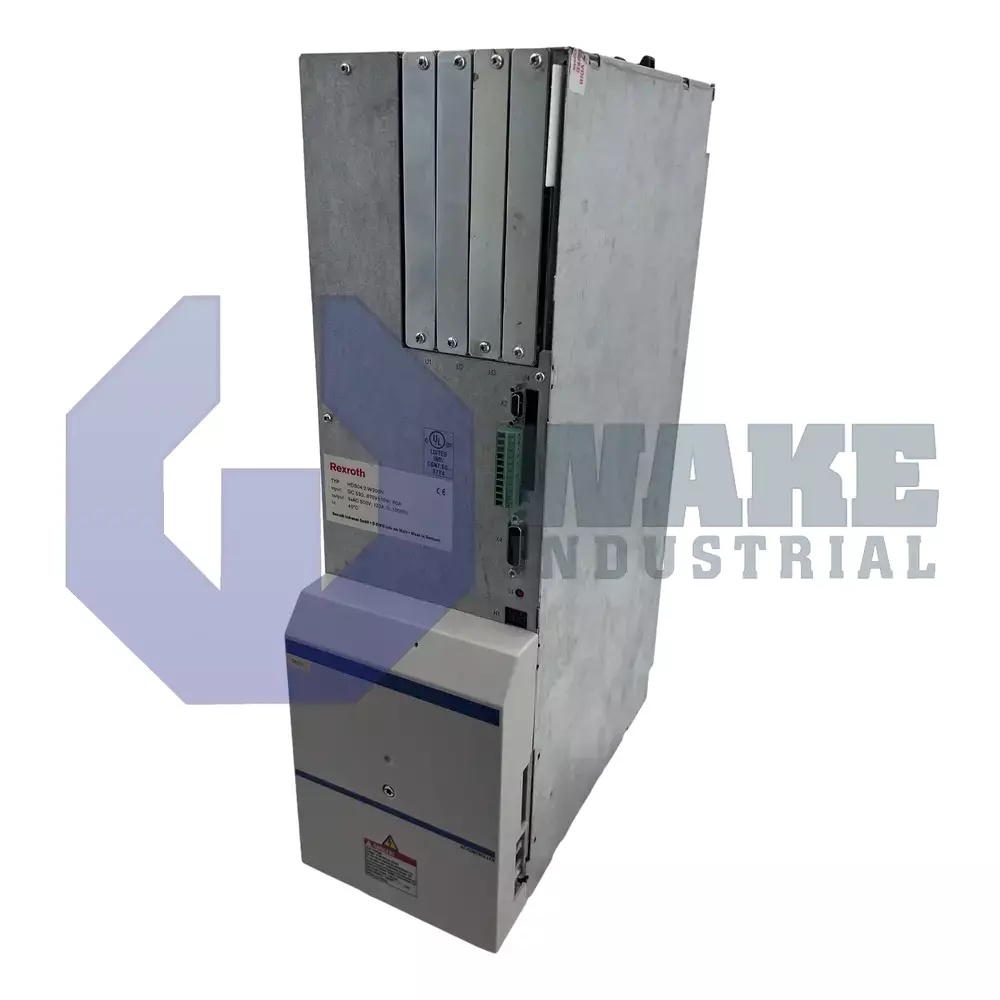

Name: HDS04.1-W200N-H
Brand: Bosch Rexroth Indramat
Price: 477 USD
Availability: InStock
Rating: 4.3 (13 reviews)

Straightforward Pricing: No Rush Fees, No Credit Card Fees

MPN: R911310560

In-Stock, Ships 3-5 Days

Call for Expedited Shipping and Product Condition Options

The HDS04.1-W200N-H servo drive controller is a highly sophisticated device designed by Bosch Rexroth Indramat. The controller combines with MKD, 1MB, MHD, and 2AD Rexroth AC motors to form rapid response automatization system. The controller has a modular design, and is delivered to customers as a fully configured unit.

Preparing your secure checkout page...

Description
Revisions
Specs
FAQ

Product Description

The HDS04.1-W200N-H is an internationally renowned industrial drive controller designed by Bosch Rexroth in accordance with American and European quality standards. The controller features a modular device is compatible with the MDD, MKD, 1MB, and 2AC motor designs. The combination of the controller with a compatible motor forms a rapid response drive suitable as servo and mine drive and capable of being used in such tasks as machine tools, textile, printing and packaging machines, robotic machines, and handling machines. The controller also features a housing designed to protect its internal components from the interference of solid foreign substances with an external diameter larger than 50 millimeters. The HDS04.1-W200N-H industrial controller is expected to be used with the HVE and HVR power supply modules manufactured by Bosch Rexroth, these modules are recommended because they can supply the exact signal and power voltages which the controller requires. The HDS04.1-W200N-H industrial controller might require an additional capacitor module is it is required to be used in applications that involves a high number of start-stop cycles. All additional components used with the controller during operation must be stated in the documentation delivered with the controller. The controller also consumes 30 watts of power for signal processing. The HDS04.1-W200N-H controller can be operated a two main clock switching frequencies; 4 kilohertz and 8 kilohertz. At the clock switching frequency of 4 kilohertz, the controller operates with a continuous input current of 120 Amperes, however at 8 kilohertz, the continuous current of the controller is about 80 kilohertz. The maximum input current that can be used by this industrial controller is about 200 Amperes. This industrial controller has a total weight of 19 kilograms.

HDS04.1-W200N-H Technical Specifications

Version :	1
Protection class:	IP10
Peak current:	200A
Switching Frequency:	4 and 8kHz
Continuous current at 4kHz switching frequency :	120A
Continuous current at 8kHz:	80A
Power loss at continuous current:	800W
Weight:	19kg
Power consumption for signals processing:	30W
Insulation classification:	C

Frequently Asked Questions about HDS04.1-W200N-H

Q: What is the advantage of the modular design of the HDS04.1-W200N-H controller?

A: The modular design of the HDS04.1-W200N-H controller enables the flexible combination of more than one controller to create a drive package implementing one supply unit.

Q: How long is the service life of the HDS04.1-W200N-H controller?

A: Under Ideal operating conditions, the controller can maintain top operation for more than 5 years without the risk of machine brakedown. The high service life of the HDS04.1-W200N-H controller makes it one of the cost-efficient devices in the industry.

Q: Can the HDS04.1-W200N-H controller operate without the software module?

A: The HDS04.1-W200N-H controller can not be used without the software module. The software modules contains configuration parameters necessary for the operation of the controller.

Q: How many types of industrial motors can be used with the HDS04.1-W200N-H controller?

A: The HDS04.1-W200N-H controller is designed specifically for Rexroth Indramat motors. It can support the operation of up to 5 different industrial motor designs including MDD, MKD, 1MB, and the 2AD ac motor.

Q: What Material is used for is used in the pacakging of the HDS04.1-W200N-H controller?

A: The HDS04.1-W200N-H controller is packaged in a carton. The carton provides the controller with sufficient protection during shipping, transportantion and storage. The carton parkages can also be recycled.
