Product Description

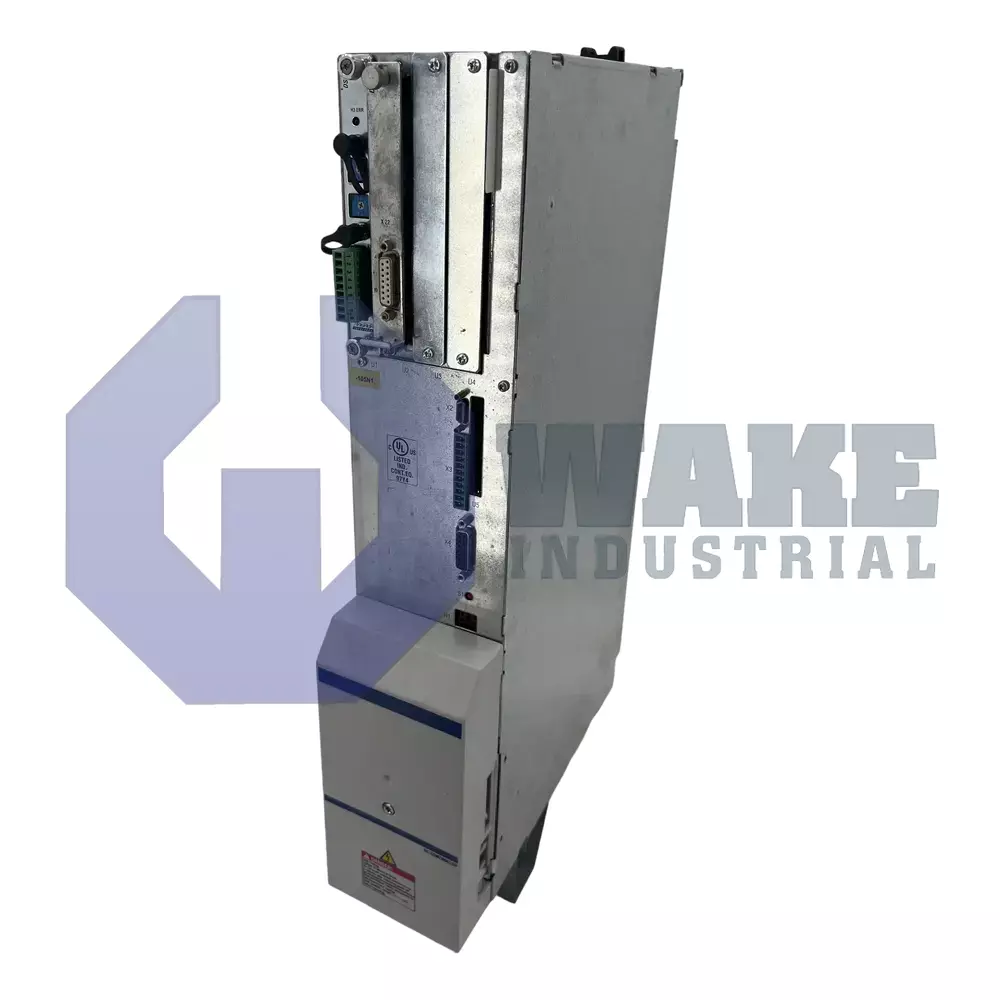

The HDS03.2-W075N-HS76-01-FW is a drive that falls under the DIAX04 controller family. This Bosch Rexroth drive comes in a modular design that enables it to be compatible with numerous AC drives. Coming in an IP 20 protection class, it is intended to be used in a closed terminal box or control cabinet. It should assume a vertical mounting orientation on the mounting DIN rail. The control cabinet should be 45 degrees or below to ensure optimum driver performance. It features an internal air cooling system. The cooling equipment features an air duct through which water condensation flows into the blower.
The built-in blower is positioned below the driver to mitigate it from spraying water condensation to the electrical parts of the driver. The HDS03.2-W075N-HS76-01-FW comes in a basic unit that comprises a configuration type plate, software module, drive controller, and additional plug-in modules. This basic unit is ideal for any function. When used with 2AD AC, 1MB, MKD, and MHD motors, it becomes a servo or mains drive for applications such as industrial robots, textile and packaging machines. Since electrostatic loads of tools or persons might damage the drive controllers, route load supply lines separate from signal supply lines to mitigate interference.
The HDS03.2-W075N-HS76-01-FW has a rated and peak current of 75A, SERCOS interface commands communication and a 3 line. The firmware, which is stored in the software module must be ordered separately. It weighs approximately 11kg, has a 220W power loss, 40/30A continuous current, and a C insulation class according to DIN VDE 0110. The ambient conditions include installation altitude of 1000M, operating and storage temperature of 5 to 45 degrees and -30 to 85 degrees respectively. The HDS03.2-W075N-HS76-01-FW can be shipped to any address worldwide with a one-year warranty period from Wake Industrial.
