Product Description

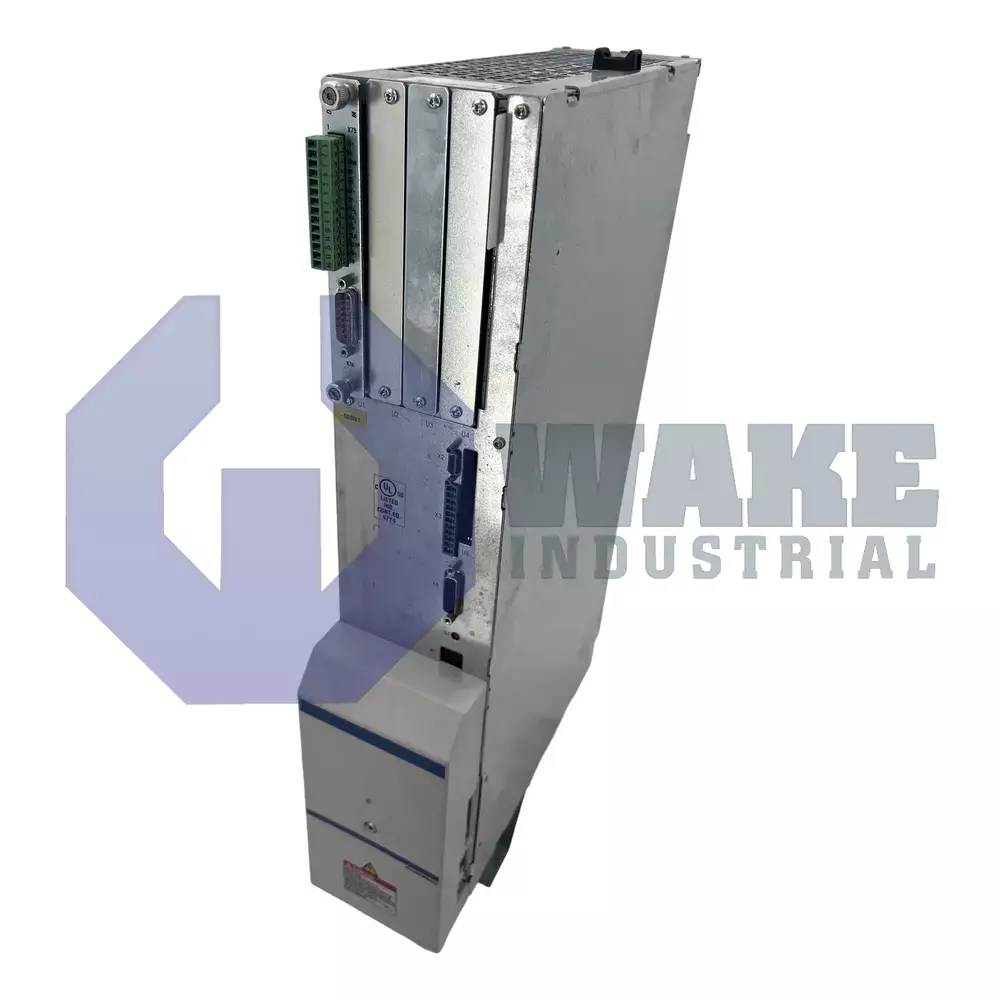

The Bosch HDS03.1-W100N-HA01-01-FW is an HDS series of drive controller. It comes with a modular structure. It provides facilities to build a powerful drive package that uses a single supply unit. This module must be installed in a well-sealed control cabinet. It is also designed to install on commercial machinery. The rated current of the HDS03.1-W100N-HA01-01-FW module is 100 Amps. It is supplied as a configured drive controller with plug-in modules, command communication modules, and software modules. The cooling system has a self-adjusting temperature which must be set at 40 degrees Celsius. Its maximum motor cable length and feedback cable length is 75 meters. It has ready-made cables which provide a direct connection between the drive controller and motor.
The HDS03.1-W100N-HA01-01-FW drive controller belongs to the DIAX04 controller family. It has a peak current of 100 amps, 280 Watts of power loss, and 11 kilograms of weight. It has a status display on the front of the unit. A built-in blower unit is used by this HDS03.1-W100N-HA01-01-FW module to dissipate the heat internally through the air. It consists of plug-in modules to configure the basic unit according to the requirement. It generates drive error messages through the SERCOS interface of the unit. The HDS03.1-W100N-HA01-01-FW drive controller has an analog command communication interface. The required signals and power voltage to the drive controller can be provided by HVR or HVE supply modules. It is recommended to use power cables of the motor with a protective shield and conductor. All the drive components are tested for insulation and high voltage according to the DIN VDE 0160 standards. This drive system is a rapid response drive package that can be used as a servo drive and the main drive. This unit can be shipped globally with a one-year warranty period from Wake Industrial.
