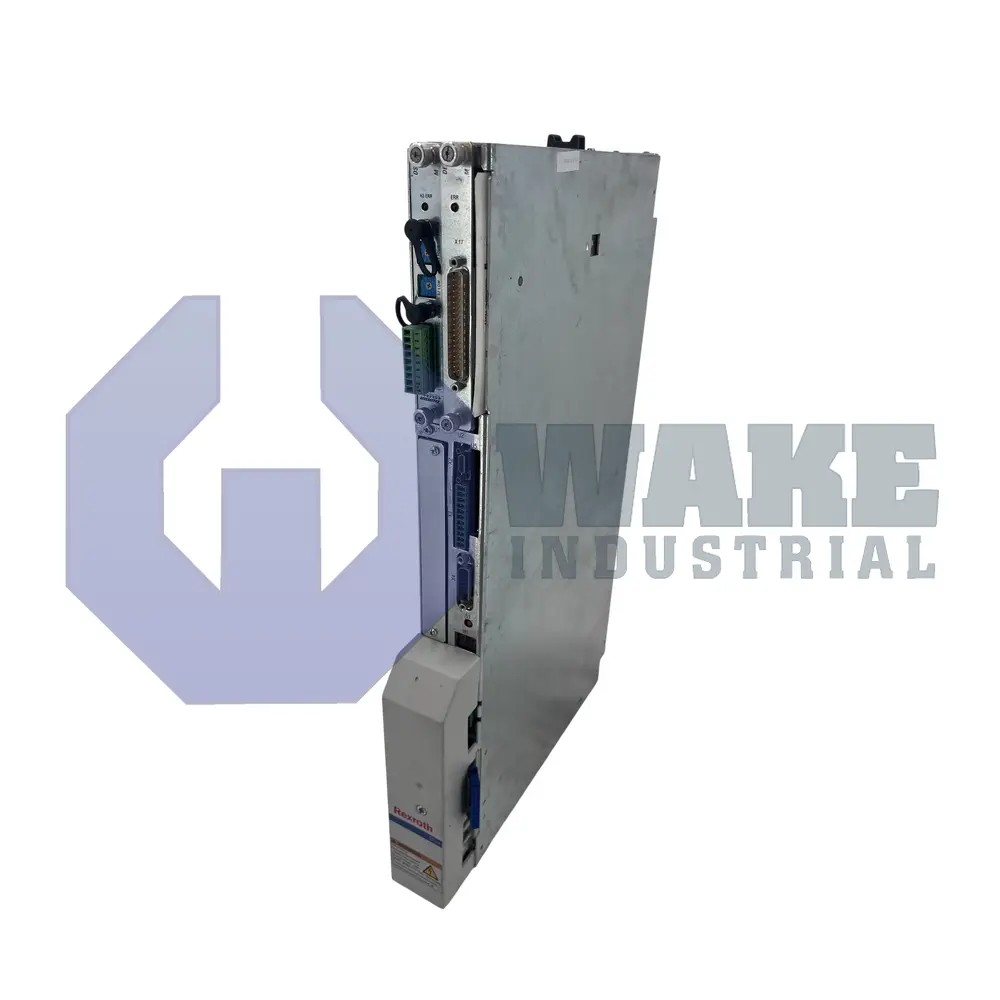

HDS02.1-W040N-HS09-01-FW

Name: HDS02.1-W040N-HS09-01-FW
Brand: Bosch Rexroth Indramat
Price: 272 USD
Availability: InStock
Rating: 4.5 (8 reviews)

Straightforward Pricing: No Rush Fees, No Credit Card Fees

MPN: R911275908

In-Stock, Ships 3-5 Days

Call for Expedited Shipping and Product Condition Options

The HDS02.1-W040N-HS09-01-FW from the Indramat HDS series features a continuous power output of 15 A at 8kHz, a power loss of 125 W, and customizable plug-in modules. Its insulation class "C" ensures operational safety.

Request a Quote Request Repair

Preparing your secure checkout page...

Description
Revisions
Specs
FAQ

Product Description

The HDS02.1-W040N-HS09-01-FW is a drive controller from the Indramat HDS series. The model is designed for efficient motor control applications. This drive controller offers versatility for use in automation and control systems. Its compact design and modular structure make it ideal for industrial machinery applications such as CNC machines, packaging equipment and robotics.

The HDS02.1-W040N-HS09-01-FW drive controller supports a rated current of 40 A with peak current reaching up to 40 A per axis. The continuous current for the unit is 20 A at 4kHz and 15 A at 8kHz. This provides consistent power delivery for motor control. It operates with a power loss of 125 W when running at continuous current and the unit weighs approximately 7.5 kg. The power consumption for signal processing from a 24V source is 40 W that makes it suitable for integration with low power systems. This drive controller operates within a permissible ambient temperature range of + 5 to + 45 degrees C and has a storage temperature range of - 30 to + 85 degrees C. Its insulation class is categorized as "C" according to DIN VDE 0110 standards and the protection category is rated at IP 10 per DIN 40 050 standards.

The HDS02.1 drive controller also features modularity in its design. It allows for the inclusion of various plug in modules that make it flexible for different industrial control requirements. The configuration includes a drive controller basic unit, a command communications module, a software module and optional additional plug in modules for enhanced functionality. This modular design is essential for customization and adaptability in varying industrial environments offering high precision, reliability and control efficiency in automation systems.

HDS02.1-W040N-HS09-01-FW Technical Specifications

Series:	HDS
Maximum Output Frequency:	1000 Hz
Rated Control Voltage Input:	26 V
Power Consumption:	40 W
Short Circuit Current Rating:	42000 A
Rated Input Voltage:	530 - 670 V
Peak Current:	40 A
Cooling:	Internal
Operating Temperature Range:	+5 to +45 degree centigrade
Allowable Pollution Degree:	2

Frequently Asked Questions about HDS02.1-W040N-HS09-01-FW

Q: What is the power handling capability of the HDS02.1-W040N-HS09-01-FW drive controller?

A: The HDS02.1-W040N-HS09-01-FW supports a rated current of 40 A. It provides 15 A continuous current at 4kHz and 10 A at 8kHz for efficient motor control.

Q: How does the modular design of the HDS02.1-W040N-HS09-01-FW enhance its functionality?

A: The HDS02.1 drive controller features a modular design allowing integration of various plug-in modules. This enhances adaptability and customization for different industrial applications such as CNC machines and robotics.

Q: What are the environmental operating conditions for the HDS02.1-W040N-HS09-01-FW drive controller?

A: The HDS02.1 operates in ambient temperatures ranging from +5 degrees C to +45 degrees C. Its storage temperature ranges from -30 degrees C to +85 degrees C, making it suitable for various industrial environments.

Q: What protection standards does the HDS02.1-W040N-HS09-01-FW comply with?

A: The HDS02.1 drive controller is rated with an IP 10 protection category according to DIN 40 050 standards. Its insulation class is categorized as "C" under DIN VDE 0110 standards for operational safety.

Q: What is the power consumption of the HDS02.1-W040N-HS09-01-FW for signal processing?

A: The HDS02.1 drive controller consumes 40 W for signal processing from a 24V source. This low power consumption makes it ideal for integration into low-power systems.

Internal Product Review

‘‘The HDS02.1-W040N-HS09-01-FW drive controller is a highly reliable choice for industrial automation. Its modular design supports flexible configurations while the 40 A peak current and 125 W power loss enhance efficiency. Its DIN VDE 0110 insulation and IP 10 protection ensure durable operation.’’
