Home Bosch Rexroth Indramat HCS Compact Converter Series HCS03.1E-W0150-A-05-NNBV

HCS03.1E-W0150-A-05-NNBV

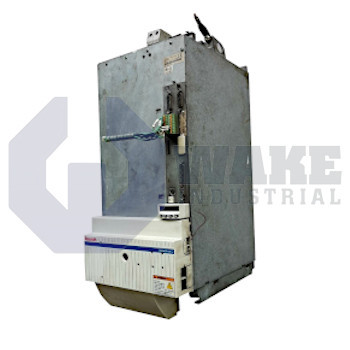

Name: HCS03.1E-W0150-A-05-NNBV
Brand: Bosch Rexroth Indramat
Price: 306 USD
Availability: InStock
Rating: 4.4 (16 reviews)

Straightforward Pricing: No Rush Fees, No Credit Card Fees

MPN: R911308421

In-Stock, Ships Today

Unused Original Box Pricing Available!
Request a Quote!
Call for Expedited Shipping and Product Condition Options

The drive controller HCS03.1E-W0150-A-05-NNBV features a rated input voltage of 3 x AC 400 - 500 V and an input current of 106 A. The model comes with IP20 protection.

Preparing your secure checkout page...

Description
Revisions
Specs
FAQ

Product Description

The unit HCS03.1E-W0150-A-05-NNBV is a drive controller manufactured by Bosch Rexroth Indramat. The company is known for providing highly efficient industrial automation technology. This drive controller is part of the HCS series which is designed to offer reliable and precise control for various industrial applications. It ensures optimal performance with built-in safety features and easy integration into automation systems.

The HCS03.1E-W0150-A-05-NNBV drive controller operates with a rated input voltage of 3 x AC 400 - 500 V. Its control voltage is 24 V, and it supports a short circuit current rating of 42,000 A providing strong electrical safety measures. The drive controller weighs around 20 kg. This unit is robust yet manageable for installation. It includes internal cooling to maintain operational efficiency, and its protection rating is IP20. This indicates protection against touch but requiring installation in protected environments. The controller has a total power factor (TPF) of 0.81/0.61 with and without a mains choke respectively, and its input current can reach up to 106 A at continuous power. For maximum inrush current, it can handle 5.7 A.

The HCS03.1E-W0150-A-05-NNBV drive controller is rated for a mains connection power of 72.9 kVA with an input voltage of AC 400 V and a mains choke, and 54 kVA without the mains choke. This ensures that it delivers substantial power to various connected devices. The controller also ensures efficient and stable operation through its high input voltage range ensuring performance across voltage fluctuations between 400 and 500 V. It features a fundamental power factor (DPF) of 0.94/0.70, with and without a mains choke. The device's mains frequency is 50...60 Hz that allows for use in most industrial settings.

HCS03.1E-W0150-A-05-NNBV Technical Specifications

Manufacturer:	Bosch Rexroth Indramat
Short Circuit Current Rating:	42000 A
Product Type:	Drive Controller
Series:	HCS
Power Supply:	Feeding
Weight:	20 kg
Rated Input Voltage:	3 x AC 400 - 500 V
Rated Control Voltage Input:	24 V
Protection Rating:	IP20
Cooling Mode:	Internal

Frequently Asked Questions about HCS03.1E-W0150-A-05-NNBV

Q: What is the power factor of the HCS03.1E-W0150-A-05-NNBV drive controller?

A: The controller features a total power factor (TPF) of 0.81 with a mains choke and 0.61 without. Its fundamental power factor (DPF) is 0.94 with a mains choke and 0.70 without.

Q: What is the input current and inrush current of the HCS03.1E-W0150-A-05-NNBV drive controller?

A: The drive controller supports an input current of up to 106 A at continuous power. It can handle a maximum inrush current of 5.7 A, ensuring smooth startup in industrial applications.

Q: How does the HCS03.1E-W0150-A-05-NNBV handle electrical safety?

A: This unit supports a short circuit current rating of up to 42,000 A. It also features an IP20 protection rating, offering protection against touch but requiring installation in protected environments.

Q: What type of cooling system is used in the HCS03.1E-W0150-A-05-NNBV drive controller?

A: The drive controller has an internal cooling system to ensure operational efficiency. This helps maintain the unit's performance under various industrial conditions, ensuring reliability and extended lifespan.

Q: What are the power and voltage specifications of the HCS03.1E-W0150-A-05-NNBV drive controller?

A: The HCS03.1E-W0150-A-05-NNBV operates at a rated input voltage of 3 x AC 400-500 V. It has a mains connection power of 72.9 kVA with a mains choke and 54 kVA without.

Internal Product Review

‘‘The Rexroth Indramat HCS03.1E-W0150-A-05-NNBV drive controller stands out for its robust design and advanced electrical safety. This supports short circuit currents up to 42,000 A. The model has an input current of 106 A, IP20 protection, and internal cooling. It ensures reliable efficient operation in demanding industrial applications.’’
