Home Bosch Rexroth Indramat HCS Compact Converter Series HCS03.1E-W0070-A-05-NNBV

HCS03.1E-W0070-A-05-NNBV

Name: HCS03.1E-W0070-A-05-NNBV
Brand: Bosch Rexroth Indramat
Price: 180 USD
Availability: InStock
Rating: 4.4 (18 reviews)

Straightforward Pricing: No Rush Fees, No Credit Card Fees

MPN: R911308417

In-Stock, Ships Today

Unused Original Box Pricing Available!
Request a Quote!
Call for Expedited Shipping and Product Condition Options

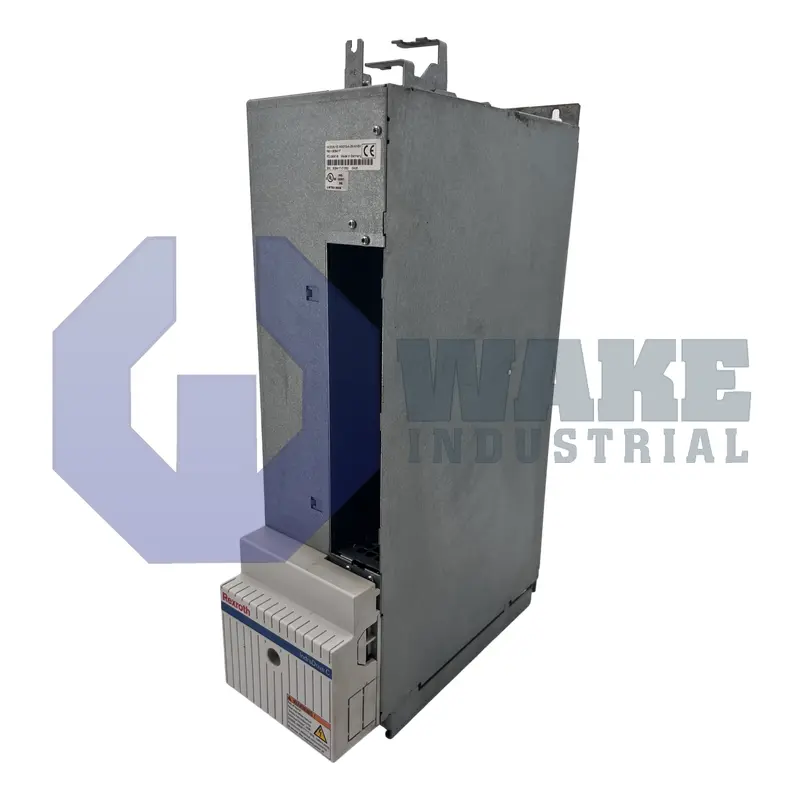

The HCS03.1E-W0070-A-05-NNBV drive controller operates at 3 x AC 400 - 500 V and supports a continuous input current of 50 A. It features a high short circuit rating of 42,000 A.

Preparing your secure checkout page...

Description
Revisions
Specs
FAQ

Product Description

Bosch Rexroth Indramat is a well-known manufacturer specializing in advanced drive and control technologies. Their range of products includes drive controllers, electric motors, and hydraulic systems designed for industrial automation. The HCS03.1E-W0070-A-05-NNBV drive controller is one such product that provides efficient performance in demanding applications.

The HCS03.1E-W0070-A-05-NNBV drive controller operates at a rated input voltage of 3 x AC 400 - 500 V, with an input frequency range of 50 to 60 Hz. Its control voltage input is 24 V, and it supports a maximum current of 70 A. The drive is cooled internally and has a protection rating of IP20 that makes it suitable for indoor applications where moderate protection is required. The short circuit current rating is 42,000 A, offering strong protection against electrical faults. The controller weighs 13 kg and it can be stored in temperatures ranging from - 20 to + 80 degrees Celsius. The model supports an allowable humidity level of 95 % and has a pollution degree rating of 2, which means it can operate in moderately polluted environments. The recommended installation height for this drive controller is 1,000 meters above sea level.

This HCS03.1E-W0070-A-05-NNBV drive controller also includes three-phase mains connection capabilities and supports continuous input currents of up to 50 A at P_DC continuous power. The total power factor at P_DC with and without mains choke is rated at 0.85 and 0.57, respectively. It offers a maximum inrush current of 2.8 A and a mains connection power of 35 kVA with a mains choke, reducing power losses during operation. This makes the drive suitable for a wide range of automation tasks. The controller's design ensures efficient and reliable performance for various industrial applications.

HCS03.1E-W0070-A-05-NNBV Technical Specifications

Rated Input Voltage:	3 x AC 400 - 500 V
Allowable Humidity:	95%
Allowable Pollution Degree:	2
Allowable Installation Height:	1000 MSL
Input Frequency:	50 - 60 Hz
Rated Control Voltage Input:	24 V
Maximum Current Rating:	70 A
Cooling Mode:	Internal
Protection Rating:	IP20
Short Circuit Current Rating:	42000 A
Weight:	13 kg
Storage Temperature Range:	-20 to +80 degree centigrade

Frequently Asked Questions about HCS03.1E-W0070-A-05-NNBV

Q: What is the input voltage and frequency range of the HCS03.1E-W0070-A-05-NNBV drive controller?

A: The HCS03.1E-W0070-A-05-NNBV operates at a rated input voltage of 3 x AC 400-500 V. Its input frequency range is 50 to 60 Hz, ensuring compatibility with industrial power systems.

Q: What are the cooling and protection features of the HCS03.1E-W0070-A-05-NNBV?

A: The drive controller has internal cooling for efficient temperature regulation. It features an IP20 protection rating, making it suitable for indoor applications requiring moderate protection from external elements.

Q: What is the maximum current and short circuit protection of the HCS03.1E-W0070-A-05-NNBV?

A: The model supports a maximum current of 70 A and has a short circuit current rating of 42,000 A. This high rating provides strong protection against electrical faults.

Q: What are the environmental storage conditions for the HCS03.1E-W0070-A-05-NNBV?

A: The controller can be stored in temperatures ranging from -20 to +80 degrees Celsius. It also supports an allowable humidity level of 95%, making it suitable for diverse storage environments.

Q: What mains connection and power factor features does the HCS03.1E-W0070-A-05-NNBV offer?

A: This drive controller includes three-phase mains connection capabilities. It supports a power factor of 0.85 with a mains choke, helping reduce power losses during continuous operation.

Internal Product Review

‘‘The Bosch Rexroth Indramat HCS03.1E-W0070-A-05-NNBV drive controller is ideal for demanding industrial tasks. It has a 42,000 A short circuit rating and 70 A maximum current. Its IP20 protection and internal cooling make it suitable for moderate indoor environments while its efficient design ensures minimal power loss.’’
