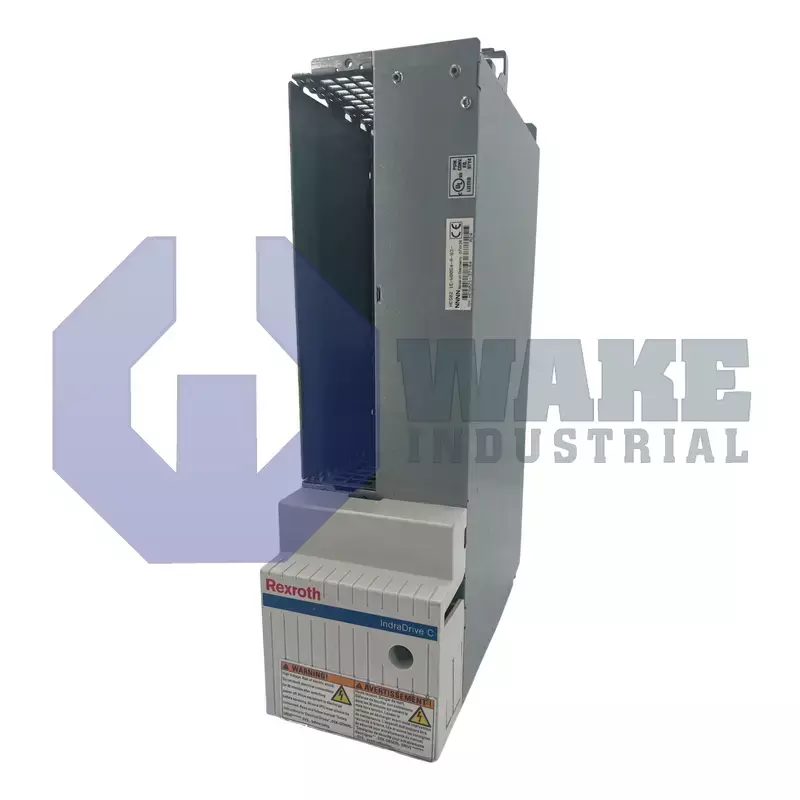

HCS02.1E-W0054-A-03-NNNN

Name: HCS02.1E-W0054-A-03-NNNN
Brand: Bosch Rexroth Indramat
Price: 473 USD
Availability: InStock
Rating: 4.5 (30 reviews)

Straightforward Pricing: No Rush Fees, No Credit Card Fees

MPN: R911298373

Unused Original Box Pricing Available!

In-Stock, Ships 1-2 Days

Current response time:

5 Minutes 18 Seconds

The Bosch Rexroth HCS02.1E-W0054-A-03-NNNN drive controller operates with a 3-phase AC input of 200 - 500 V. Its compact design includes an air-cooling system and a high SCCR of 42,000 A.

Preparing your secure checkout page...

Description
Revisions
Specs
FAQ

Product Description

Bosch Rexroth Indramat is a globally recognized manufacturer known for its expertise in producing automation technology and drive systems. The company offers a range of products including servo drives, motors, and control systems. These products cater to diverse industrial automation applications.

The HCS02.1E-W0054-A-03-NNNN drive controller is designed for efficient operation and reliable performance in industrial environments. It has a rated input voltage of 3-phase AC ranging between 200 to 500 V with a tolerance of ~ 10 %. The rated input current is 20 A and it operates at an input frequency between 50 to 60 Hz, with a tolerance of ~ 2 Hz. The controller also features a rated control voltage input of 24 V ~ 20 % and power consumption of 23 W. With a short-circuit current rating (SCCR) of 42,000 A rms, the HCS series drive controller ensures a high level of protection in case of electrical faults. It has an output voltage of up to 530 V AC, and the maximum output current is 22 A, with an output frequency range from 0 to 1600 Hz. The power dissipation at continuous current is rated at 270 W.

This HCS02.1E-W0054-A-03-NNNN drive controller is designed to be compact and space-efficient, with dimensions of 352 mm in height, 206 mm in depth, and 105 mm in width. The pollution degree rating of 2 highlights its capability to operate in moderately dirty industrial environments. It requires a branch circuit protection fuse rated at 25 A and supports a wire size of 4 mm^2 according to EN 60204-1 standards. The internal wiring complies with UL 508A standards, requiring a wire size of AWG 12. The controller integrates air-cooling through an internal blower.

HCS02.1E-W0054-A-03-NNNN Technical Specifications

Series:	HCS
Cooling Mode:	Internal
Weight:	6.7 kg
Branch Circuit Protection Fuse:	25
Operating Temperature Range:	0 to 40 degree centigrade
Storage Temperature Range:	-20 to +80 degree centigrade
Allowable Pollution Degree:	2
Product Type:	Drive Controller
Rated Control Voltage Input:	24 V
Short Circuit Current Rating:	42000 A
Rated Input Voltage:	3 x AC 200 - 500 V
Input Frequency:	50 - 60 Hz
Rated Input Current:	20 A
Maximum Current Rating:	54 A
Protection Rating:	IP20

Frequently Asked Questions about HCS02.1E-W0054-A-03-NNNN

Q: What are the input voltage and frequency specifications of the Bosch Rexroth HCS02.1E-W0054-A-03-NNNN drive controller?

A: The drive controller operates with a 3-phase AC input voltage ranging from 200 to 500 V with ~ 10% tolerance. It supports an input frequency of 50 to 60 Hz, with a ~ 2 Hz tolerance.

Q: How does the HCS02.1E-W0054-A-03-NNNN ensure protection against electrical faults?

A: The controller offers a high short-circuit current rating (SCCR) of 42,000 A rms. This provides robust protection against electrical faults, ensuring reliable and safe operation in industrial settings.

Q: What are the cooling and power dissipation features of the Bosch Rexroth HCS02.1E-W0054-A-03-NNNN?

A: This drive controller integrates an air-cooling system via an internal blower. It has a power dissipation rating of 270 W at continuous current, ensuring efficient thermal management.

Q: What environmental conditions can the HCS02.1E-W0054-A-03-NNNN operate in?

A: The drive controller has a pollution degree rating of 2, allowing it to function in moderately dirty industrial environments. It is designed to handle such conditions effectively for reliable performance.

Q: What are the wiring and circuit protection requirements for the HCS02.1E-W0054-A-03-NNNN?

A: The internal wiring complies with UL 508A standards and requires a wire size of AWG 12. The controller also needs a branch circuit protection fuse rated at 25 A for safety.
