HCS02.1E-W0070

Name: HCS02.1E-W0070
Brand: Bosch Rexroth Indramat
Price: 464 USD
Availability: InStock
Rating: 4.6 (16 reviews)

Straightforward Pricing: No Rush Fees, No Credit Card Fees

MPN: not found

In-Stock, Ships 1-2 Days

Current response time:

5 Minutes 55 Seconds

The HCS02.1E-W0070 from Rexroth Indramat delivers high-performance motor control with a 42,000 A short circuit current rating. Its IP20 protection and 300 W power dissipation make it ideal for moderately polluted industrial environments.

Email

Phone

Part Number

+Add a message

Website

Preparing your secure checkout page...

Product Description

Rexroth Indramat is a global leader in industrial automation technology. The company offers a wide range of motion control products. Their product lineup includes drive controllers, servo motors, frequency converters, and industrial hydraulics. These products cater to various automation needs across industries.

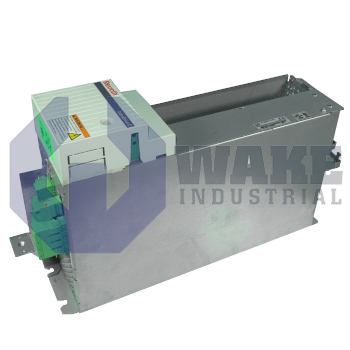

The HCS02.1E-W0070 drive controller is a high-performance drive controller designed to regulate AC motors effectively. It features an integrated blower for internal cooling that ensures optimal thermal management. This model operates on a 3-phase AC input voltage ranging from 200 V to 500 V with a maximum current of 70 A. It supports an output current of 28 A and provides an output voltage of up to 530 V AC. This HCS series drive controller has a compact design measuring 352 mm in height and 206 mm in depth. This makes it ideal for space-constrained installations. With a power dissipation rate of 300 W under continuous operation, it is suitable for demanding industrial environments. Additional features include a pollution degree of 2 that allows operation in moderately polluted environments. It comes with an IP20 protection rating that ensures safe and reliable performance.

The HCS02.1E-W0070 drive controller operates within an ambient temperature range of 40 degrees C with a reduced operational limit of 55 degrees C under lower load conditions. Its short circuit current rating is 42,000 A offering robust protection. The rated control voltage is 24 V and the power consumption for control voltage input is 23 W, supporting efficient control operations. Designed to operate in frequencies between 50 to 60 Hz, the drive controller provides precision motor control across a wide range of industrial applications. Wake Industrial stocks this item and offers an easily claimable one year replacement warranty.

HCS02.1E-W0070 Technical Specifications

Manufacturer:	Bosch Rexroth Indramat
Protection Rating:	IP20
Series:	HCS
Product Type:	Drive Controller
Rated Input Voltage:	3 x AC 200 - 500 V
Input Frequency:	50 - 60 Hz
Maximum Current Rating:	70 A
Rated Control Voltage Input:	24 V
Rated Input Current:	30 A
Short Circuit Current Rating:	42000 A

Frequently Asked Questions about HCS02.1E-W0070

Q: What cooling mechanism does the HCS02.1E-W0070 drive controller use?

A: The HCS02.1E-W0070 drive controller features an integrated blower for internal cooling. This ensures optimal thermal management, making it suitable for continuous operation in demanding industrial environments.

Q: What are the environmental operating limits for the HCS02.1E-W0070?

A: The HCS02.1E-W0070 operates within an ambient temperature range of up to 40 degrees C, with a reduced limit of 55 degrees C under lower load conditions. Its pollution degree of 2 allows it to function in moderately polluted environments.

Q: What is the short circuit current rating for the HCS02.1E-W0070 drive controller?

A: The HCS02.1E-W0070 has a robust short circuit current rating of 42,000 A. This offers superior protection for the controller in high-demand industrial applications.

Q: What are the size dimensions of the HCS02.1E-W0070, and why are they important?

A: The HCS02.1E-W0070 has a compact design, measuring 352 mm in height and 206 mm in depth. This makes it ideal for installations in space-constrained environments, improving flexibility in industrial setups.

Q: What is the input voltage range for the HCS02.1E-W0070 drive controller?

A: The HCS02.1E-W0070 operates on a 3-phase AC input voltage between 200 V and 500 V. It supports a maximum current of 70 A, ensuring reliable power regulation for AC motors.

Internal Product Review

‘‘The HCS02.1E-W0070 drive controller stands out for its exceptional durability and performance. The model comes with an ambient operating range of up to 55 degrees C, a short circuit rating of 42,000 A, and an efficient 530 V AC output. It ensures reliable performance in industrial applications. ’’
