FECG02.1-37K0-3P400-A-BN-MODB-01V01-S001

Product Description

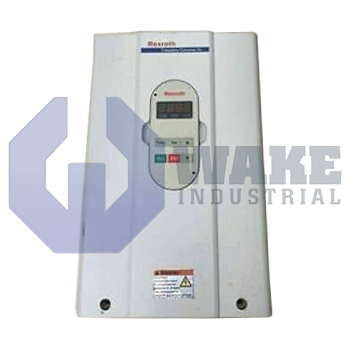

The FECG02.1-37K0-3P400-A-BN-MODB-01V01-S001 is a Bosch FE series frequency converter. Electrical data for the device includes 37 kilowatts output power, 400 Volts AC input, 83 Amps input current, 50 kVA apparent power and 75 Amps rated output current. The weight of the FECG02.1-37K0-3P400-A-BN-MODB-01V01-S001 is 22 kilograms. Height of the converter is 574 millimeters, the width is 290 millimeters and the depth is 236 millimeter. M8 screws are recommended for converter mounting. The FECG02.1-37K0-3P400-A-BN-MODB-01V01-S001 is designed for vertical mounting. The device must be sufficiently ventilated to avoid overheating. Bosch recommends minimum vertical spacing of 150 millimeters and minimum horizontal spacing of 50 millimeters between adjacent devices to prevent overheating. A baffle plate is recommended to prevent the rising hot air from a converter from being drawn into the upper frequency converter. The control unit on the FECG02.1-37K0-3P400-A-BN-MODB-01V01-S001 is big and is of the standard variety (without potentiometer).

Functions supported by the FECG02.1-37K0-3P400-A-BN-MODB-01V01-S001 include programmable skip frequencies, upper and lower frequency commands, DC braking for starting and stopping, PI control, energy saving, Modbus communication, fault reset, drooping control, forward and reverse rotation dead zone, constant voltage control, jogging control, speed capturing, automatic adjustment of PWM frequency as per temperature, current no-trip control, dynamic braking set point with function code, zero speed control, restart after power failure, and multi-speed and logic control. Interfaces that are avaible on the FECG02.1-37K0-3P400-A-BN-MODB-01V01-S001 include 8 digital inputs, 1 encoder input for speed feedback, 3 analog inputs, 2 open collector outputs, 1 pulse output, 1 relay output, 2 analog outputs and one RS-484 port. The converter housing is IP20 rated. Only qualified personnel who have read the product documentation should install and operate the FE series frequency converters. This unit can be shipped globally with a one-year warranty period from Wake Industrial.
