EFC3610-1K50-3P4-MDA-NN-NNNNN-NNNN

Product Description

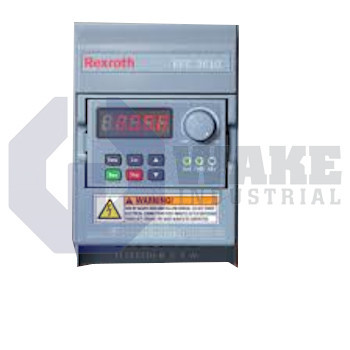

The EFC3610-1K50-3P4-MDA-NN-NNNNN-NNNN is a wall-mounted frequency converter with a 3-phase AC electric power supply terminal. It is manufactured by Bosch Rexroth, and its output capacity is 2.7 kVA. The rated power output of this product equals 1.5 kW. Its net mass is approximately 1.9 kg and mounted with an M4 screw size. There is also a rail mounting alternative available for this EFC 3610 model.

The EFC3610-1K50-3P4-MDA-NN-NNNNN-NNNN has a standard configuration control unit and an internally fitted EMC filter. There are no LED or LCD panels in place, but it has a dust cover operating panel that indicates FWD, Run, Power and REV. At derated equipment data, the air temperature range is 44 to 55 degrees. Without derating data, the recommended ambient air temperature range is -10 ^oC to 45 ^oC. This equipment loses heat by forced convection. The pollution class according to EN 50178 is rated 2. The EFC3610-1K50-3P4-MDA-NN-NNNNN-NNNN belongs to the EFC 3610 product line 02, and it leverages on the Modbus protocol for communication. This model does not have a specific firmware.

When transporting it, the allowable temperature range is -25…70 degrees and relative humidity between 5 – 95 %. Also, the climate category during transportation of this equipment is 2K3, per IEC 721. During storage, the permissible temperature range is between -20 and 60 ^oC, and the climate category is 1K3, according to IEC 721. The input and output current of the EFC3610-1K50-3P4-MDA-NN-NNNNN-NNNN at 380volts is 4.8 Amps and 4.0 Amps respectively. Also, the input and output current of this frequency converter at 480volts is 3.8 Amps and 3.2 Amps respectively. The handling, maintenance, and repair of this EFC 3610 model must be done by qualified and trained personnel at all times. This unit can be shipped globally with a one-year warranty period from Wake Industrial.
