Product Description

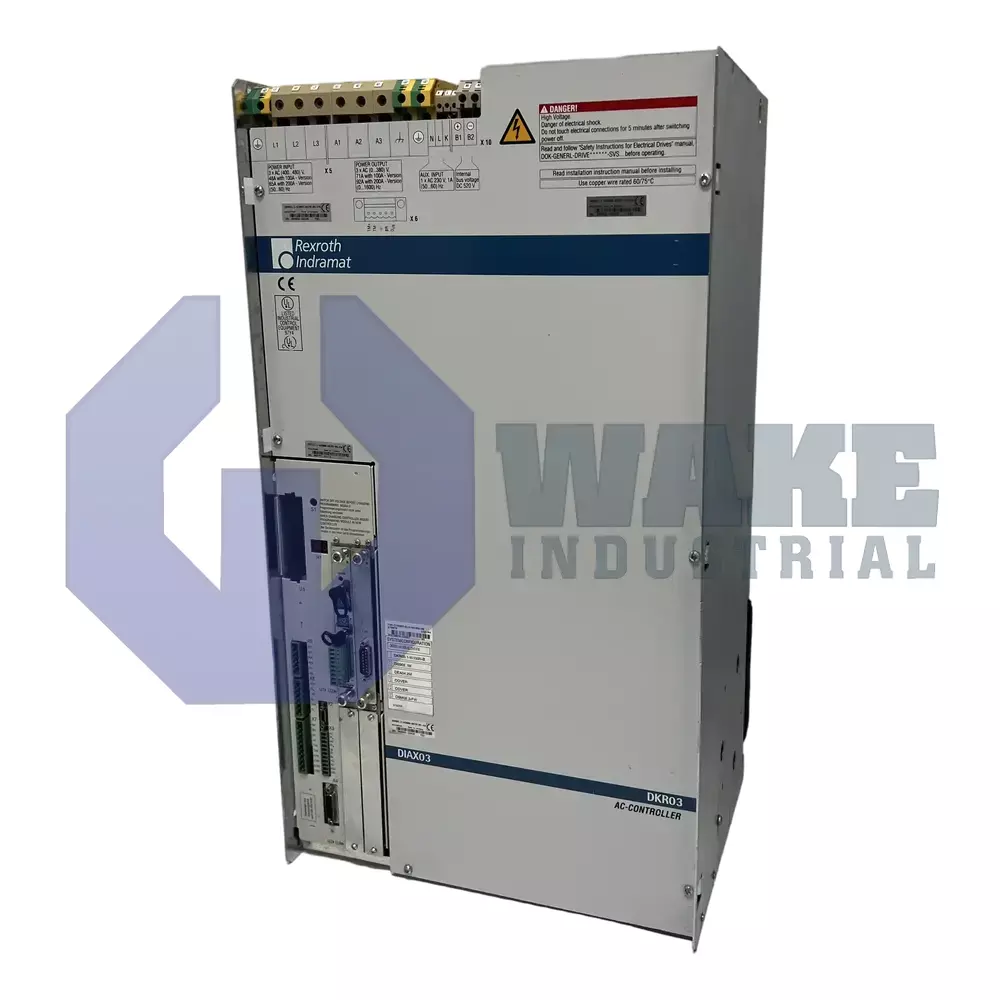

The DKR03.1-W200Z-BE79-01-FW is a DKR product group drive controller from Bosch Rexroth. The controller has a basic unit that can be adapted according to the application using plug-in cards. The product should be installed only according to the instructions specified in the documentation. This device might need extra sensors to monitor and control the motor. The unit features a protection rating of IP 20 according to IEC 529 / EN 60529 specifications. It has a line code of 03. The device is widely used in printing machines. The drive controller can be delivered to any address worldwide through our reliable logistics network.
The drive controller operates between an ambient temperature range of 5°C and 45°C. It must be operated only if the application complies with the national EMC regulations. The capacitors of the device must be allowed to discharge for at least five minutes after the device is turned OFF. The unit has a leakage current of more than 3.5A. It uses a SERCOS interface for command communication. The controller is likely to go through dangerous movements if unclean or wrong cable connections are given and it can happen any time during the operation.
The power connection of the controller must be isolated with an emergency stop circuit to avoid unplanned startup. A master switch is used to disconnect the product during repair and maintenance work. The drive has a peak current rating of 141A. The cooling mode is through air circulation with a built-in blower. The unit must be allowed to cool down for at least 10 minutes after switching OFF, before touching it. It has a system frequency of 50 to 60Hz and a power voltage rating of 0 to 380V. The device also features a total heat dissipation of 1,200W. The DKR03.1-W200Z-BE79-01-FW drive controller comes with a Wake Industrial warranty for one year.
