Product Description

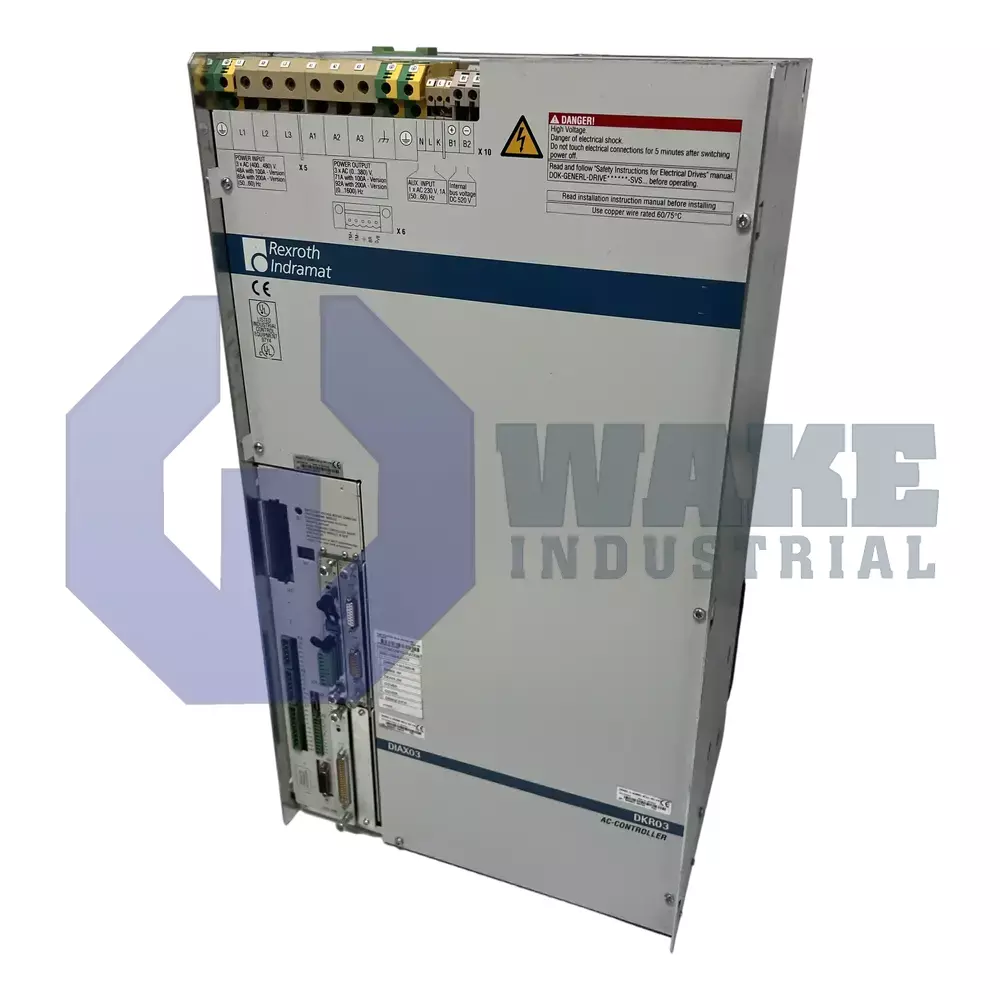

The DKR03.1-W200Z-BE11-02-FW is a digital intelligent drive controller from Bosch. It has line 03, type 1 design, 300 amps of rated current, SERCOS communication interface, and a firmware. This module is designed to use with main spindle motors, LSF or LAF linear motors, and frameless spindle motors. It has an integrated brake resistor that can absorb the energy released by the braking operation to stop the motor in a controlled way. The heat dissipation of the DKR03.1-W200Z-BE11-02-FW servo drive controller is done through a built-in blower. Its rated power voltage is 3 x 400-480 Volts AC. The cooling air is transferred through the drive controller using an air duct. It can also use the inside and outside air of the control cabinet for heat dissipation.
The DKR03.1-W200Z-BE11-02-FW drive controller comes with a function numeric code of 02 and version function numeric code of 00. Its control voltage is 230 Volts AC. The communication between the drive controller and PC must be established for the programming and commissioning of the module. It offers RS-232 and RS-485 serial interfaces to communicate with the PC at a 9600/19200 baud rate. The motor feedback of the DKR03.1-W200Z-BE11-02-FW module is digital servo and resolver feedback. It is recommended to use a feedback cable assembly manufactured by Rexroth for feedback connections. The total heat dissipation of the module is 1200 Watts. The DKR03.1-W200Z-BE11-02-FW drive controller belongs to the DKR family of servo controllers. It weighs 49 kilograms. The protection category of the drive is IP20. Make sure to store the module and accessories in a dry, dust-free, and shock-free environment. This servo drive is specifically designed for controlling and monitoring the operations of electrical motors. This unit can be shipped globally with a one-year warranty period from Wake Industrial.
