The model DKR03.1-W200B-BE37-01-FW delivers 35 kW continuous power at 4 kHz, with a peak current of 141 A. It supports 3-phase AC voltage and features energy regeneration capabilities for efficient industrial automation control.

Warranty
Wake Industrial Warranty
To contact sales for pricing and lead time:

Payment Methods

Visa
Mastercard
AmEx
Wire Transfer

Shipping Methods

DHL
UPS
FedEx
Freight

Our Credentials

Cary Chamber
DUNS Registered
SAM Registered
BBB Accredited

Product Description:

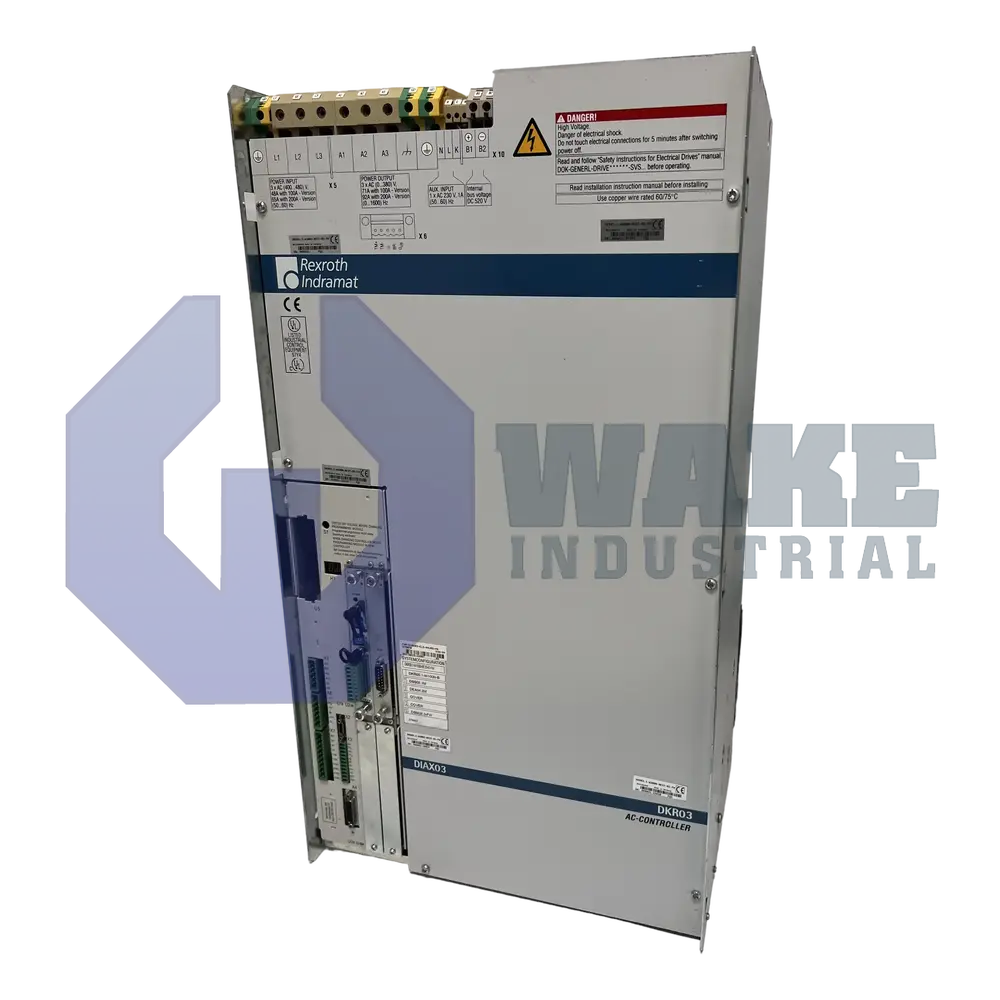

The Bosch Rexroth DKR03.1-W200B-BE37-01-FW drive controller is part of the DKR series. It is designed to deliver high-performance motor control. This drive is suitable for industrial automation applications requiring precise torque and speed control, such as robotics, CNC machinery, and automated production systems.

The DKR03.1-W200B-BE37-01-FW drive controller operates with a rated power voltage of 3-phase AC 400 - 480 V that allows it to support motor speeds and torque optimally. It operates on a system frequency of 50 - 60 Hz and has a control voltage of AC 230 V. Its continuous current rating is 92 A (at 4 kHz) while the peak current can go up to 141 A. This ensuring robust power delivery for high-demand applications. The drive provides continuous power of 35 kW (at 4 kHz) and its peak power reaches up to 55 kW that makes it suitable for high-load tasks. The drive controller has built-in energy regeneration capabilities with a continuous regenerated power rating of 30 kW and peak power of 55 kW.

The DKR series drive controller uses a built-in blower for cooling and can operate in ambient temperatures ranging from + 5 degrees C to + 45 degrees C. The maximum permissible ambient temperature is + 55 degrees C with a derating of nominal data to 80 % when required. The model weighs approximately 49 kg. The drive controller is engineered for use in industrial environments up to 1000 m above sea level. The device features a protection rating of IP20 per EN60529 standards that ensures safety in indoor applications. The auxiliary brake resistor of the drive controller can handle up to 150 kWs of braking energy for added safety in dynamic braking scenarios.

Control Voltage
AC 230 V
Control Voltage Frequency
50 - 60 Hz
Control Voltage Power
200 VA
Cooling Method
Build-in Blower
Product Type
Drive Controller
Protection Rating
IP20
Rated Power Voltage
3 x AC (400 - 480) V
Series
DKR Series
System Frequency
50 - 60 Hz
Weight
49 kg

Frequently Asked Questions about DKR03.1-W200B-BE37-01-FW:

Q: What is the operating voltage of the DKR03.1-W200B-BE37-01-FW drive controller?

A: The DKR03.1-W200B-BE37-01-FW operates with a 3-phase AC voltage range of 400 to 480 V. This ensures optimal motor control in high-performance applications requiring precise speed and torque regulation.

Q: What cooling system does the DKR03.1-W200B-BE37-01-FW use?

A: This drive controller features a built-in blower for efficient cooling. It ensures the unit operates reliably within ambient temperatures from +5 degrees C to +45 degrees C, with a derating option for higher temperatures.

Q: How much braking energy can the auxiliary brake resistor handle?

A: The auxiliary brake resistor in the DKR03.1-W200B-BE37-01-FW can manage up to 150 kWs of braking energy. This capability provides added safety during dynamic braking scenarios in high-demand applications.

Q: What are the power ratings of the DKR03.1-W200B-BE37-01-FW?

A: This drive controller delivers a continuous power output of 35 kW at 4 kHz. It can reach a peak power output of 55 kW, making it suitable for demanding industrial automation tasks.

Q: What environmental conditions can the DKR03.1-W200B-BE37-01-FW operate in?

A: The DKR03.1-W200B-BE37-01-FW is designed for industrial environments up to 1000 meters above sea level. It has an IP20 protection rating, ensuring reliable operation in indoor conditions compliant with EN60529 standards.


Internal Product Review

  • ‘‘The drive controller DKR03.1-W200B-BE37-01-FW is a top choice for high-demand industrial applications. It handles up to 55 kW peak power and supports advanced braking with a 150 kWs auxiliary brake resistor. It has a robust 3-phase AC input and built-in blower for reliable, high-performance operation.’’
