Product Description
Bosch Rexroth manufactures top-notch industrial automation equipment like driver controllers, supply modules, and operator terminals. The company provides energy-efficient and affordable solutions to various automation problems.

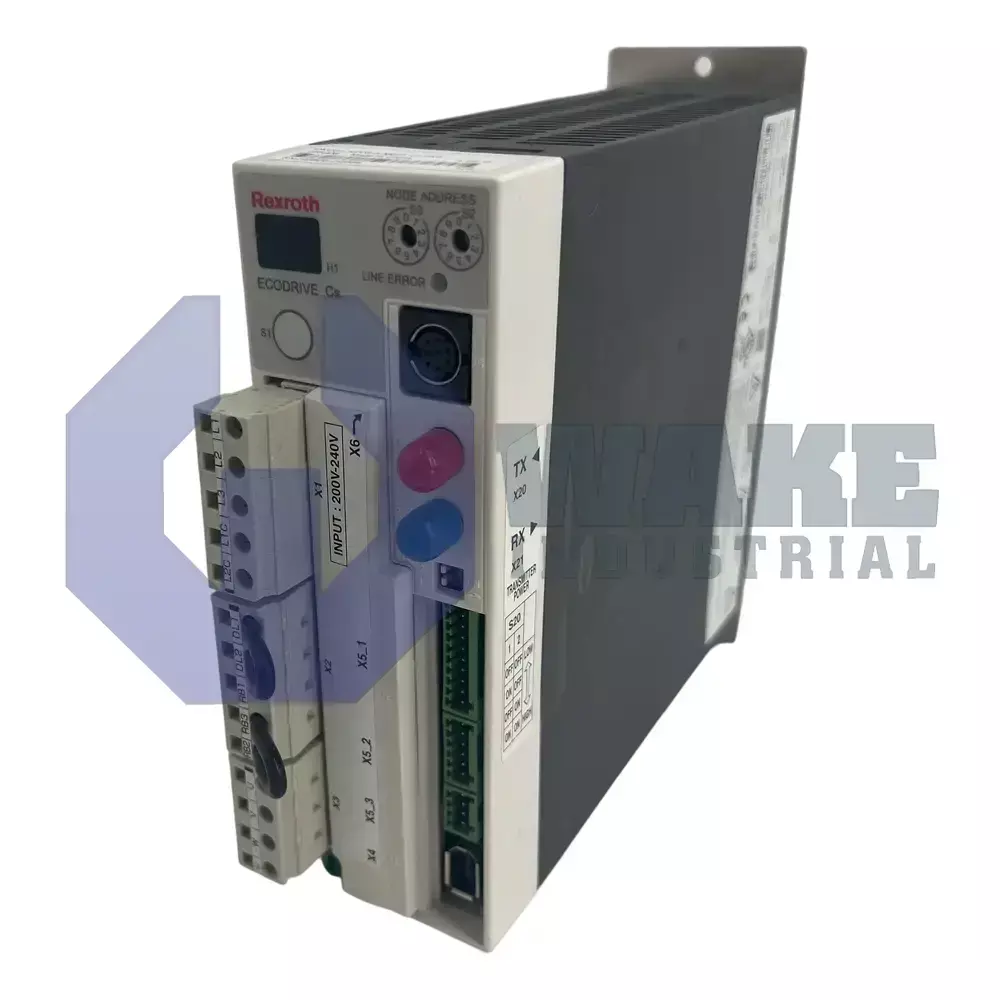

The DKC04.3-008-3-MGP-01VRS model is designed and developed by Rexroth Indramat to control and monitor the operations of MSM synchronous motors. The controller must be operated together with the parts and accessories specified by the supplier. The DKC04.3 drive controller belongs to the family of the EcoDrive Cs drive system. The model comes with an InterBus interface for developing real-time communication between the controller and the motor. The controller is equipped with an external power supply unit that generates the dc-link voltage of 300 VDC which is further supplied to the drive controller. The model takes its electrical connection directly from the single-phase or three-phase AC 200 – 240 V power supply unit with ±15% tolerance and 50 – 60 Hz of system frequency. The continuous power delivered by the unit is 0.7 kVA and the model operates at the continuous current of 8 A. An operator panel is placed in this unit for manual programming. The operator panel consists of an H1 display, S1 button, and S2, S3 address switches. The overall weight of the DKC04.3 drive controller is approximately 1.8 kg.
The model DKC04.3-008-3-MGP-01VRS comes under the IP20 protection category and it should be installed in the control cabinet of at least the IP54 protection category. During continuous operation, the controller undergoes the power dissipation of 31.3 W while operating at the PWM frequency of 8 kHz. The maximum allowable temperature, without derating, is 0 to +40 degree Celsius and it can be performed ideally at the maximum height of 1000 m/sea level. The model is equipped with an external brake resistor that provides protection against overvoltage. The continuous dc-bus power of the unit is 253 W and a multi interface general purpose firmware is installed in this unit.
