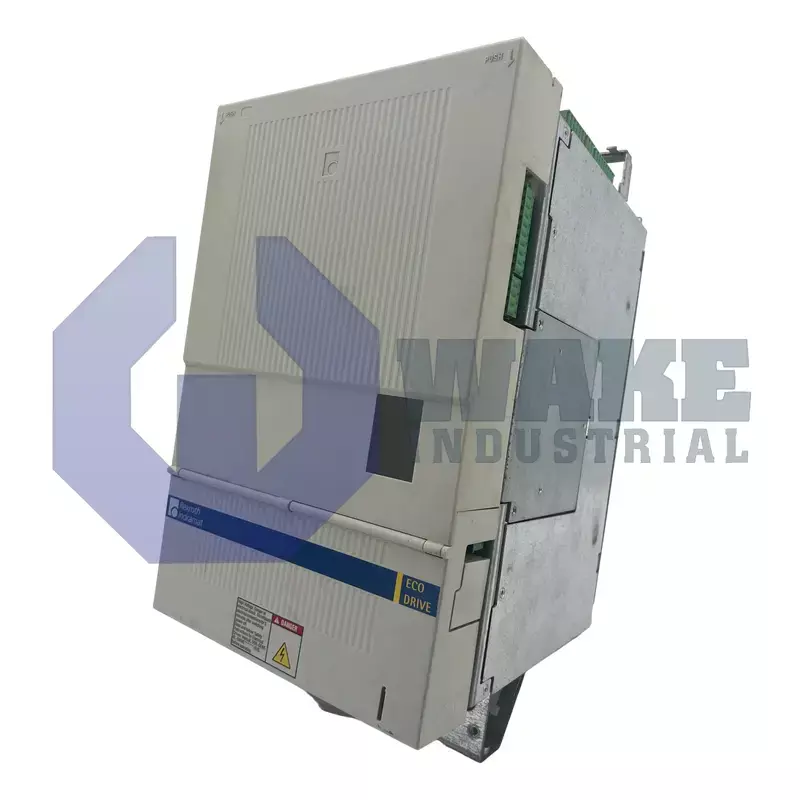

The DKC01.3-200-7-FW is a high-performance and versatile AC servo amplifier drive controller designed for use in industrial machinery. The device, manufactured by Bosch Rexroth Indramat, comes with standard firmware. The unit has a current rating of 200 A. The DKC01.3-200-7-FW module is equipped with RS232/485 and Analog communication interfaces as well as a DKC01.3-LK-EAK02 option card for Parallel and Stepper interfaces.

Email

Phone

Part Number

+Add a message

Website

Preparing your secure checkout page...

Product Description

Rexroth Bosch Indramat manufactures the DKC01.3-200-7-FW as part of the ECODRIVE drive controllers. It offers the highest functionality for any application. It features an exceptional price-to-performance ratio that presents you with a cost-effective solution for applications such as machine tools, handling machines, packaging, and food processing machines. It offers outstanding performance data and has a wide array of functions. It consists of an easy startup, automatic parameter matching, integrated holding brake control, safe operation, and highly dynamic operation. It can be used as a servo drive with integrated position control, stepper interface, electronic gearbox function, and an analog speed interface.

The DKC01.3-200-7-FW ambient conditions include a maximum installation height of 1000 meters above sea level, a permissible relative humidity of 95%, and absolute humidity of 25g/m3. The ambient storage and operating temperatures are -30 to 85 degrees and 0 to 45 degrees respectively. It features a natural air cooling method, weighs 4.4 kg, and an IP 20 protection category. It has a 200 A current type and a rated circuit voltage of 700 V. the firmware that comes with the functional features is ordered separately. The DKC01.3-200-7-FW is mounted in a control cabinet that meets IP 10 protection demands. The DKC01.3-200-7-FW module is equipped with RS232/485 and Analog communication interfaces as well as a DKC01.3-LK-EAK02 option card for Parallel and Stepper interfaces. The RS232/485 and Analog interfaces enable serial communication over long distances and handle continuous signals for real-time parameter control, respectively. The Parallel interface provides high-speed data transfer via simultaneous bit transmission, while the Stepper interface is designed to control stepper motors.

This type with used with an electronic gearbox function, it presents the user with two operating modes namely speed and angle synchronization. The lead axis position is given in degrees and the lead axis encoder should be connected to the DKC01.3-200-7-FW stepper interface. When this Rexroth servo drive is used in conjunction with integrated position control, all speed, position, and acceleration data are weighted independently.

DKC01.3-200-7-FW Technical Specifications

Firmware:	Sold Separately
Mains frequency:	50 to 60 Hz
Version:	3
Type current:	8 amps
Voltage category:	3
Firmware:	MGP-01VRS
Max. allowed installation altitude for the output ratings:	1000 meters
Permissible operating temperature:	5 to 45 degree celsius
Labels/Testings:	CE, C-UL
Operating mode at mains:	single phase / three phase

Frequently Asked Questions about DKC01.3-200-7-FW

Q: What are the main applications of the DKC01.3-200-7-FW?

A: The DKC01.3-200-7-FW has been manufactured for a wide range of drive control tasks and can be integrated with machine tools, packaging machines, handling equipment, and food processing machines.

Q: Which key features are provided with this model?

A: The DKC01.3-200-7-FW is provided with featires like parameter matching, safe operation, holding brake control, and an analog speed interface.

Q: What type of ambient conditions are suitable for using this model?

A: The DKC01.3-200-7-FW can be used in areas where the ambient air temperature is between 0 degree celsius and 40 degree celsius.

Q: How is extra heat dissipated using this model?

A: The DKC01.3-200-7-FW uses the natural air cooling method to ensure optimum cooling of the system at all times.

Q: Can the DKC01.3-200-7-FW control position and speed independently?

A: Yes, the DKC01.3-200-7-FW is provided with the option to control the position and speed independently with its integrated position control feature.
