Product Description

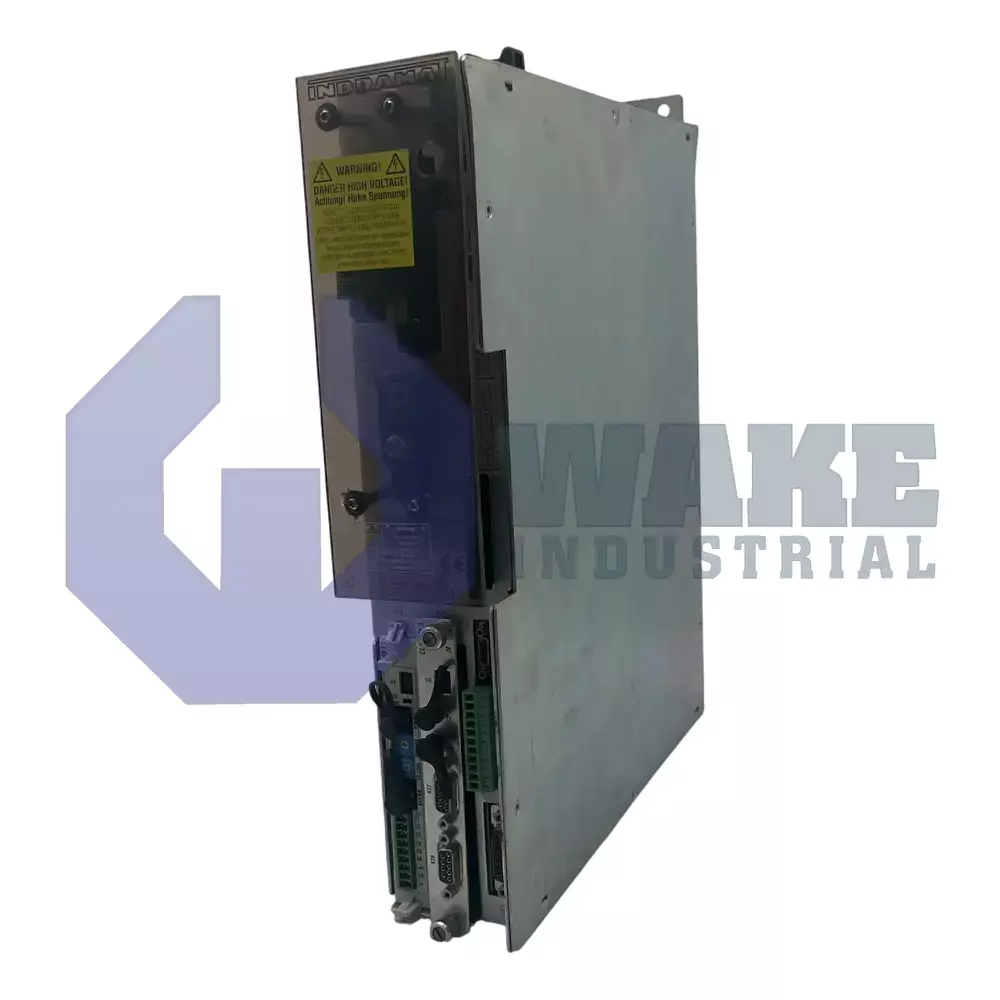

The Bosch Rexroth DDS03.2-W050-BE41-02-FW drive controller has a version code of 2. This product has a rated current of 50A. The device has a firmware that is updated regularly for the controller to perform accurately without having to change its functions. The faceplate and rating plate of the unit must be removed during the mounting process and fitted once again later. Its current consumption includes the current consumption of its plug-in modules as well as the motor feedback. The drive controller has an IP 20 degree of protection as per EN 60529 specifications. The product is not protected against the penetration of water.
This device can be placed close to another controller with a distance of nearly 75mm between them. The unit mounting must be done only in the vertical orientation. Its L1, L2 and protective earth terminals are connected using M5 screws with a tightening torque of 3Nm. The controller must have sufficient clearance distance above and below it inside the control cabinet in which it is installed. The product should incorporate separate routing channels for its signal lines and supply lines. The device features an RS 232 serial interface at its X2 connecting point. The DDS03.2-W050-BE41-02-FW controller comes with a year’s Wake Industrial warranty.
The controller connection with the motor is meant to be done using a motor power cable from the same manufacturer. This cable features one line for the connection of the protective conductor, three lines for connection of the motor power as well as shielded pairs of cables and lines for motor temperature monitoring and motor brake. The product controls the holding brake of the motor. The device is connected next to another controller through DC bus rails. The analog diagnostic outputs of this unit generate drive internal variables for test purposes. The drive controller is delivered to the desired destination through reputed freight carriers.
