Product Description

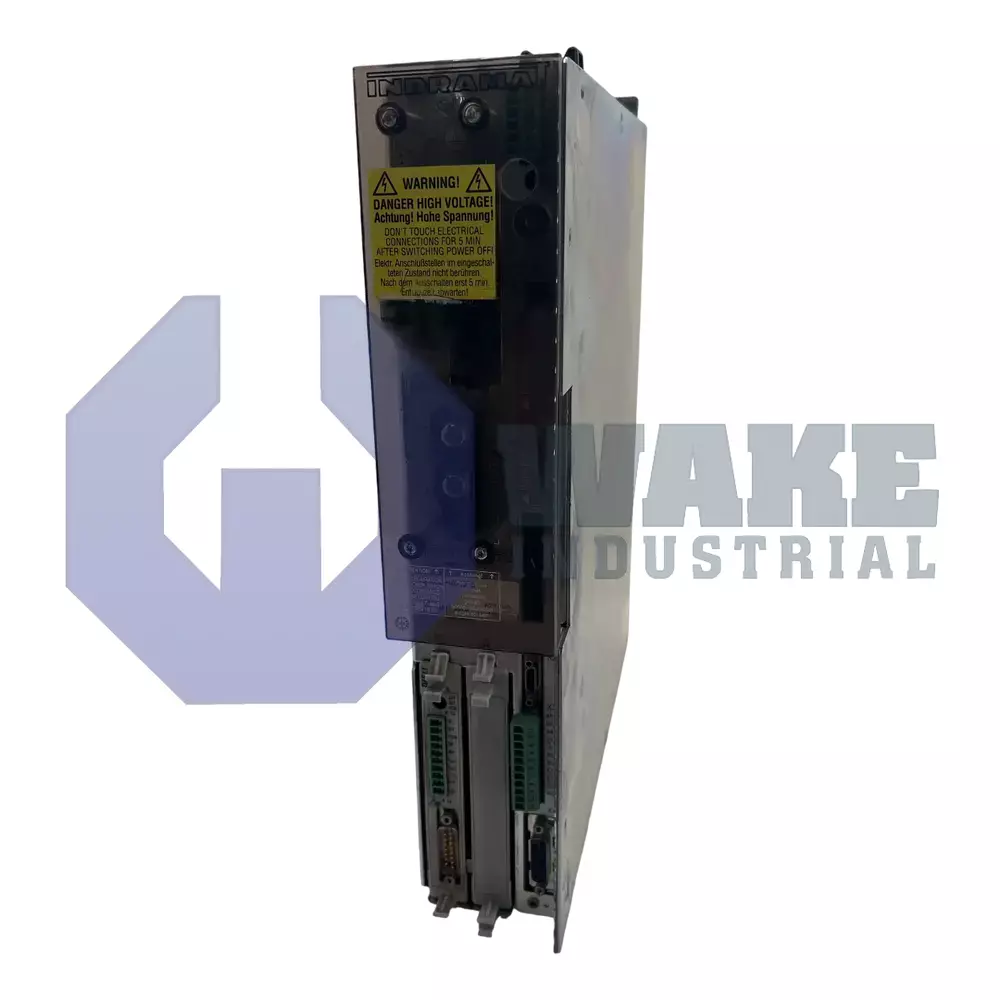

The Bosch DDS03.1-W030-RC01-00 is a DDS series controller. It supports resolver feedback. This allows use of the controller with motors that include analog resolvers. A resolver is a device that measures motor operating parameters. The motor sends these measurements to the controller over a feedback cable. The controller varies its output based on these measurements. The function of the controller is to monitor motor parameters and bring them in line with programmed motor parameter values. The controller also provides motor power. The controller itself gets 24 Volts DC power from a compatible power supply with regulated output. The rated output of the DDS03.1-W030-RC01-00 controller is 30 Amps. This output rating is only valid for specified ambient conditions. Use of the controller outside these ambient conditions leads to output derating.
Some DDS controllers some with a heat sink and dissipate heat outside the cabinet. The DDS03.1-W030-RC01-00 however dissipates heat inside the cabinet. The inlet for cool air is on the bottom of the controller. The outlet for the warm is on the top side of the controller. To ensure smooth air flow, Bosch recommends providing at least 80 millimeters of free space on the top and bottom sides and 40 millimeters on the front side of the mounted controller. The communication module installed on the DDS03.1-W030-RC01-00 supports Interbus-S. The controller firmware must be ordered separately. The function ID of the DDS03.1-W030-RC01-00 is 01 and the function ID version is 00. Shipping eight of the DDS03.1-W030-RC01-00 is 5.5 kilograms. The controller belongs to IP20 protection class. Unprofessional installation can lead to wiring errors and other types of installation errors. Therefore Bosch recommends professional installation by trained and experienced technicians.
