Product Description

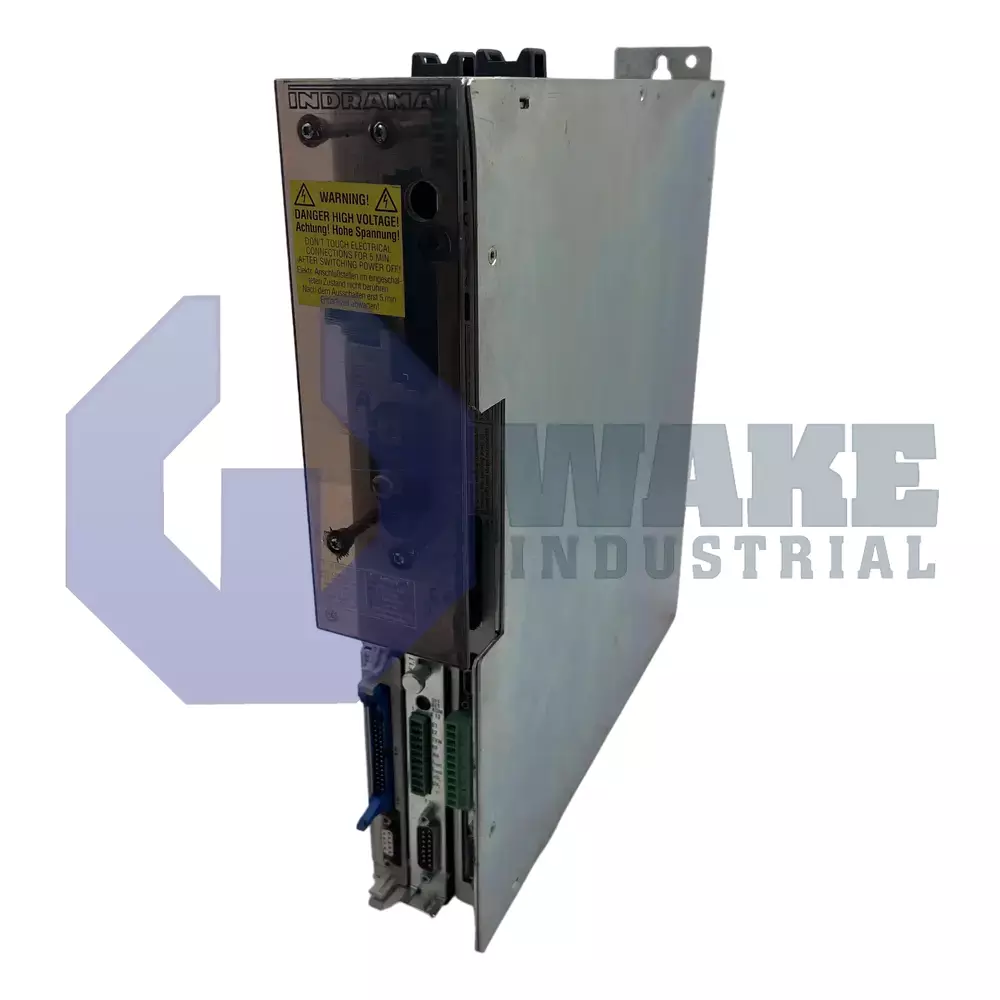

The DDS03.1-W030-DL20-00 drive controller manufactured by Bosch Rexroth helps to control and monitor the operation of an AC motor. The controller has an IP 20 degree of protection as per EN 60529 specifications. The product deploys a modular concept that makes it possible to connect several drives with a single power supply. The device operates similar to a rapid response drive when it is used with an MKD, a LAR or an MDD series motor. The unit supports the attachment of four functional modules apart from the software module. It has a fault reset key and a status display for highlighting the error and warning messages.
The controller must not have earth loops as this can cause interference and make it difficult to clear faults. This product has to be connected with the AC motor using the manufacturer’s power cable. The device uses its X1 connector for the control electronics. The unit features two analog diagnostic outputs that generate drive-internal variables for test purposes. Its starting lockout assists in preventing the associated motor from unintentional startup when a fault is encountered. The drive controller allows connection to a computer through its serial interface at the X2 connector. This DDS03.1-W030-DL20-00 controller has one-year backup support and can be shipped worldwide.
The product utilizes its X4 terminal for connecting the motor feedback. The device uses the overload factor for setting its continuous current when it is being commissioned. The unit has 150mA current consumption at +/-15V. Its power section has a DC bus voltage of 300V +/-15%. The controller is to be installed at a maximum elevation of 1000m over sea level. The energy loss of this product is based on its continuous current when the related motor is in standstill mode. The device weighs approximately 5.5kg. The unit must necessarily be mounted inside a closed housing. It has no firmware.
