Product Description

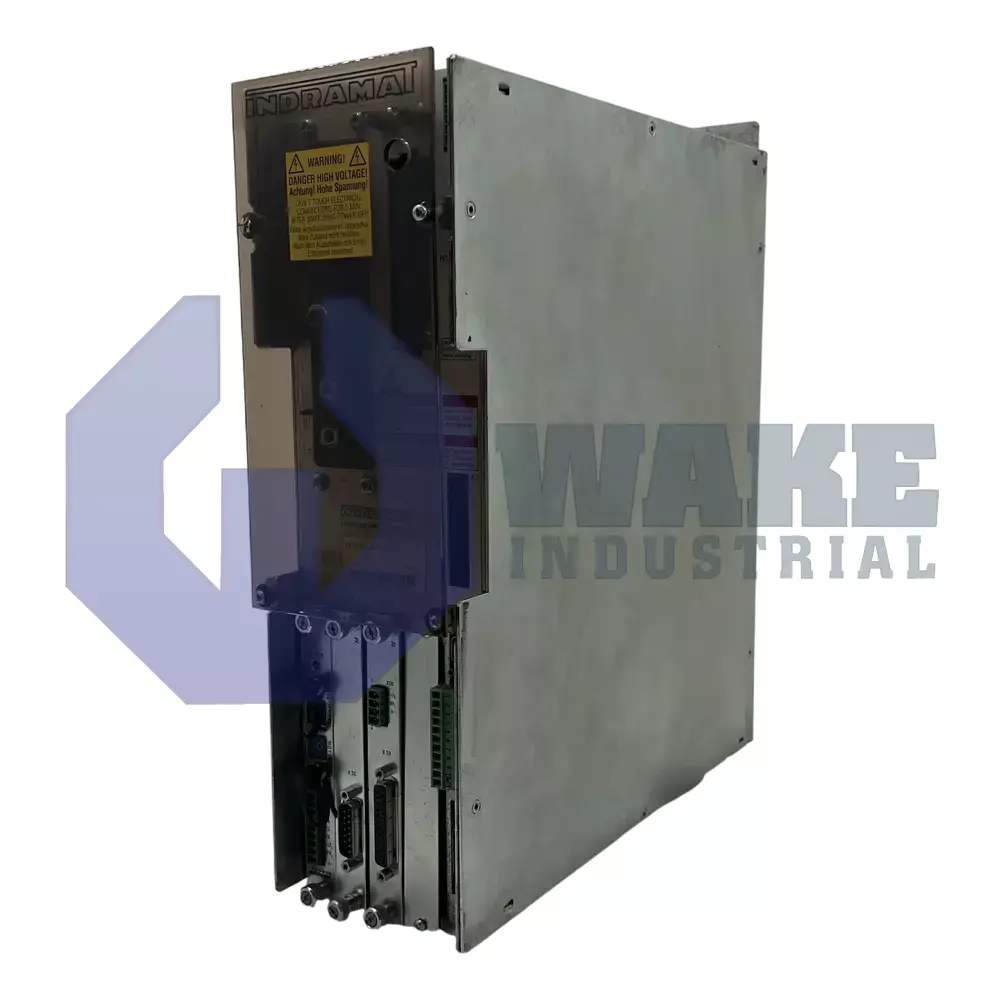

The Bosch DDS02.2-W200-BE04-00 is a DDS drive controller. Its rated current output is 200 Amps. As per the type code, the series is 2 and the version is also 2. The function ID of the DDS02.2-W200-BE04-00 is 04 and the function ID version is 00. The nominal voltage on the controller DC bus is 300 Volts DC. The tolerance of the DC bus voltage is 15%. Input voltage rating of the controller is 24 Volts DC. Only power supplies with regulated DC output are allowed. A single DC power supply can provide power for multiple DDS drives. The supply unit makes available DC +24V and DC +/- 15V for all connected drive controllers. The sum of the current consumed by all drive controllers may not be permitted to exceed the current output of the supply unit.
The DDS02.2-W200-BE04-00 drive is designed for heat technology. During operation the controller dissipates heat inside the control cabinet. The recommend ambient temperature range is 0 to 45 degrees Celsius. Proper heat dissipation requires appropriate inter-device spacing. For this reason Bosch recommends providing a minimum spacing of 40 millimeters on the front side of the controller and a minimum spacing of 80 millimeters on the top and bottom sides. Feedback methods supported by the DDS02.2-W200-BE04-00 are digital servo feedback and resolver feedback. The command communication module installed on the DDS02.2-W200-BE04-00 is SERCOS. This interface supports 2 / 4 Mbps data transfer rates. Control devices on a SERCOS network are arranged in ring topology. The physical medium used for data transmission is fiber optic cable. To minimize installation errors and ensure reliable operation, the DDS02.2-W200-BE04-00 must be installed by trained personnel.
